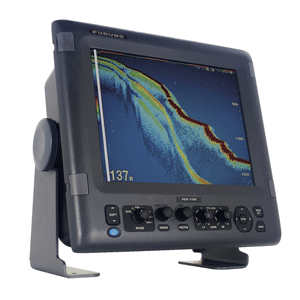

Furuno FCV1150 12.1" Color Fishfinder (No Transducer)
Furuno FCV1150 12.1" Color Fishfinder (No Transducer)



Brand New with Factory's Warranty
List Price: US$5,895.00
Our Price: US$4,895.00
You save US$1,000.00!



Availability:: Usually ships the next business day
Product Code: 34017

Description Extended Information


High performance 12.1 LCD digital fish finder delivers super clear view of fish targets!

The FCV-1150 is a color digital sounder designed for a variety of professional fishing operations. It's high-brightness color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.

 FURUNO Digital Filter ACCU-FISH?  Auto Tuning (Sensitivity) Enhanced Sunlight Viewable Bonded LCD

Features

  • High-brightness (1,000CD) 12.1 LCD with AR coated glass filter and anti-polarized sunglass filter

  • Post-processing gain control applies changes to gain setting to all existing returns on the display

  • White Edge bottom discrimination

  • Available Heaving Compensation provides stable echo presentation even in rough seas

  • FURUNO Digital Filter delivers crystal clear target presentation

  • Furuno Free Synthesizer (FFS) allows for adjustable operating frequency

Specifications

DISPLAY

Display unit 12.1" TFT color LCD
Pixel number 800  600

FISH FINDER

Frequency The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer 1, 2 or 3 kW
Range Scale 5-3000 m
Pulselength & PRR 20-3000 pulse/min
Display Mode Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing IP55 (When flush mounted)
Power Supply 12-24 VDC: 3.3-1.7 A
100/110/220/230 VAC,
optional rectifier required
Size 345 (H) x 356 (W) x 199 (D)
Weight Bracket Mount: 8.2 kg
Flush Mount: 6.8 kg

Screenshots

Equipment List

Standard

  •  DISPLAY UNIT FCV-1150-E
    1 UNIT
  •  STANDARD SPARE PARTS, INSTALLATION MATERIALS,
    ACCESSORIES AND MANUALS

    1 SET





Interconnection Diagram
