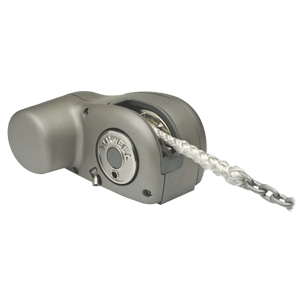

FEATURES

• Aesthetically pleasing above deck design, incorporating the motor and drive in a IP66 rated watertight unit, saving space below deck and allowing simple routine maintenance. High-pressure die cast, marine grade, alloy case is chromate passivated and polyester powder coated for unsurpassed marine protection.
• Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up.
• Proven and patented tension arm system, within a safe, enclosed design, guarantees trouble free rode transition from rope to chain.
• Integrated composite nylon through deck hawse pipe for ease of installation and smooth, snag free operation.
• High efficiency 59:1 ratio straight cut, spur gearbox incorporating a robust (tough) non-backwind mechanism.
• High speed, jam free retrieval of rope and chain controlled from remote, panel mounted Up/Down switch control.
• Emergency, freefall function in the event of onboard power failure.
• Innovative chainwheel constructed of marine-grade alloy bronze with a high quality chrome finish suitable for use with 6 to 8mm (1/4" to 5/16") short link chain and either 3-Strand or 8-Plait rope.
• Heavy duty, dual direction motor incorporating "new technology" features, easily removed for simple routine electric brush maintenance and integrated wiring for quick electrical installation.

Important: Maxwell windlasses must be used in conjunction with a chain stopper or snubbing device to take the load off the windlass while laying at anchor. The chain stopper and alternative snubbing system can also be used to secure the anchor in the fully raised position while under way.

STANDARD EQUIPMENT

• Up/down remote control panel
• Dual direction control system
• Circuit breaker/isolator panel
• Emergency freefall activation lever.

SPECIFICATIONS

Model	HRC-6	HRC-8
Maximum Pull	270kg	410kg
	600 lbs	900 lbs
Working Load	23kg	34kg
	50 lbs	75 lbs
Chain Short Link	6mm/7mm	6mm/7mm, 8mm
	1/4"	1/4" - 5/16"
Rope Size (Nylon)	12mm	12mm - 14mm
(3 Strand or 8 Plait)	1/2"	1/2" - 9/16"
Line Speed	33m/min	35m/min
(Anchor Retrieval - Normal Load)	108ft/min	115ft/min
Maximum Line Speed	41m/min	44m/min
(Anchor Deployment)	135ft/min	144ft/min
Power Supply (DC)	12	12 or 24V
Motor (Watts)	400w	600w
Net Weight	10.5kg	10.5kg
Current Draw at working load	45Amp	62Amp
Circuit Breaker	50Amp	70Amp

DIMENSIONS

BOTH MODELS	mm	inches
A	134mm	5 1/4"
B	255mm	10"
C	120mm	4 3/4"
D	197mm	7 3/4"
E	150mm	6"
F	200mm	8"
