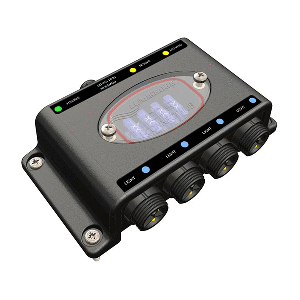

EOS i-Connect Hub Kit, i-Connect Hub Kit with 1M DMX Cable

Features:

• Full EOS Color Change
• Lumi-Link Compatible
• Specially Designed for Ease of Installation
• Plug-and-Play Connections
• Built-in Switching Power Relay
• Replaceable Blade Fuse For Each Light
• Status Indication LED for Each Light
• Built-In Noise Filter

Specifications:

• Number of Lights per Hub: 4
• Max Number of Hubs per Installation (Surface Mount): 4 Hubs (16 Lights)
• Max Number of Hubs per Installation (Thru Hull): 4 Hubs (16 Lights)
• Connections: Plug and Play Connections
• Fuses: Replaceable Blade Fuses. Each Light Individually Fused
• Status Indication LEDs: Yes – for Each Light
• Voltage Range: 10.5 – 31V DC
• Max Input Current: 20 A
• Max Output Current: (i.e., Max Current Per Light): 5 A
• Cable Entry / Exit: IP68 Connections
• Switching Method: Built-in Relay
• Noise Suppression: Built-in Noise Filter
• Reverse Polarity Protection: Yes
• Lumi-Link Compatible: Yes
• Ingress Progression: IP68
• Box Construction: Robust Weatherproof ABS
