Lumishore Eclipse DL55 Blue & White Down Light 12/24vDC White Housing
Lumishore Eclipse DL55 Blue & White Down Light 12/24vDC White Housing

Brand New with Factory's Warranty
List Price: US$134.99
Price: US$134.99


Free Shipping
Availability:: Usually ships the next business day
Product Code: 010-04475-00

Description

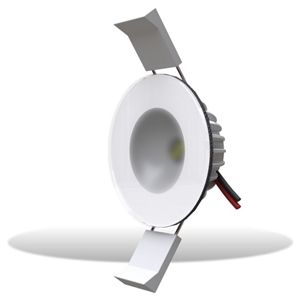

Lumishore Eclipse DL55 Blue & White Down Light 12/24vDC White Housing

Model: 010-04475-00

Lumishore’s ECLIPSE Downlights provide excellent illumination to enhance a variety of indoor or outdoor overhead spaces onboard.

Constructed of a durable aluminium body with a glass front, completely water sealed and IP67 rated.

Simple to install (2 wire hookup) with a shallow depth profile of only 21mm (0.83").

Available in dual color blue and white, single color blue or white, and White + RGB. Choose from a black or white finish to complement your boats aesthetic.

Specifications

Colors Blue & White (5000 K)
LED Type 2 x 3W Blue LEDs / 2 x 3W White LEDs
Customer Control Options On/Off Switch or ECLIPSE Command Center
Electrical Installation Simple 2 Wire Installation
Supply Voltage Range 12V DC Only (10 - 15V DC)
Max Current Draw (12/24V DC) 0.4A
Ingress Protection IP67
Front Diamater (Bezel) 64.0mm (2.519")
Profile 3.5mm (0.137")
Hole Diameter for fitting 50.8mm (2.0")
Mechanical Installation Stainless Steel Spring Clips
Warranty 3 Years

Quick Guide View (pdf)
Installation Guide View (pdf)
