Furuno FCV295 10.4 inch Fish Finder (No Transducer)
Furuno FCV295 10.4 inch Fish Finder (No Transducer)



Brand New with Factory's Warranty
List Price: US$3,795.00
Our Price: US$2,789.00
You save US$1,006.00!


Availability:: Usually ships the next business day
Product Code: 34184

Description Extended Information

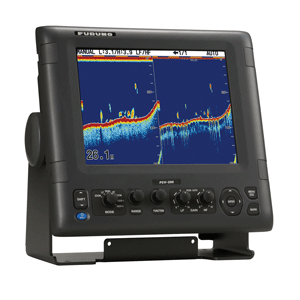

10.4" COLOR LCD SOUNDERModel FCV-295

New digital fish finder delivers crystal clear image of fish targets and bottom structure

The FCV-295 is a color digital sounder designed for a variety of professional fishing operations. It features a bonded 10.4 LCD display providing superior viewing even in direct sunlight. You can display echoes in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo.



 Auto Tuning (Sensitivity) Enhanced Sunlight Viewable Bonded LCD



Features

  • 10.4"bonded color LCD provides clear view in any weather conditions

  • Post-processing gain control applies to all existing returns on the display

  • White Edge function trace the bottom contour with a thin white line

  • FURUNO Digital Filter delivers crystal clear target presentation

  • FURUNO Free Synthesizer transceiver allows adjustable operating frequency

Specifications

DISPLAY

Display unit 10.4" TFT color LCD
Pixel number 640 x 480

FISH FINDER

Frequency The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer 1, 2 or 3 kW
Range Scale 5-3000 m
Pulselength & PRR 20-3000 pulse/min
Display Mode Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing IP55 (When flush mounted)
Power Supply 12-24 VDC: 2.6-1.3 A
100/110/220/230 VAC, optional rectifier required
Size 270 (H) x 233 (W) x 158 (D)
Weight 7.0 kg

Screenshots













Equipment List

Standard

  •  DISPLAY UNIT FCV-295-E
    1 UNIT
  •  STANDARD SPARE PARTS, INSTALLATION MATERIALS,
    ACCESSORIES AND MANUALS

    1 SET







Interconnection Diagram
