Mastervolt ChargeMaster Plus 24V, 30A, 3-Bank Charger 44320305
Mastervolt ChargeMaster Plus 24V, 30A, 3-Bank Charger 44320305

Up to $4000 Mail-in Rebate





Brand New with Factory's Warranty
List Price: US$1,099.99
Our Price: US$895.00
You save US$204.99!



Availability:: Usually ships the next business day
Product Code: 44320305

Description

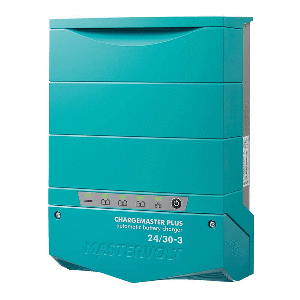

    Mastervolt Chargemaster Plus 24/30-3 Battery Charger

    Model: 44320305


    • Improved cooling technology results in very low noise levels across the entire power range.
    • Use as a standalone charger or as part of a complete system.
    • Automatic power distribution, maximum charging current possible on each output.
    • All 3 outputs can provide maximum current*
    • Pre-float eliminates the risk of overcharging.
    • Automatic current distribution - charging current distribution based on the condition of the battery.
    • Compatible with worldwide frequencies and mains voltages.
    • Smaller and lighter than the previous model.

    The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.

    The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.

    The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.

    The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger

    The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.

    The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.

    *The total charging current shall not exceed the maximum of the model.

    *The total charging current shall not exceed the maximum of the model.

    *The total charging current shall not exceed the maximum of the model.

    Specifications


    General specifications
    Nominal output voltage (output 1 & 2) 24 V
    Max. output current primary output 30 A
    Total charge current 30 A at 28,5 V
    Max. AC current (230 V / 120 V) 4.2 A / 8.6 A
    Number of battery outlets 3 (max.)
    Battery bank size 120-240 Ah
    Nominal input voltage 120/230 V (80-275 V) 50/60 Hz
    Power supply mode Yes
    Galvanic isolation Yes
    Display/read-out LED display
    Dimensions, hxwxd 11.5 x 8.3 x 4.1 inch
    Weight 5.5 lb
    Compliance CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA
    Communication interfaces MasterBus, CZone, NMEA2000
    Technical specifications
    Charge characteristic IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
    Temperature compensation -30 mV/°C / -17 mV/°F; temperature sensor included
    DC voltage compensation Yes, via automatic compensation or MasterShunt
    Power consumption (DC side) yes, through MasterBus or Czone
    Current Control function yes, through MasterBus
    Power factor control > 0.98
    Temperature range (ambient temp.) -25 °C to 80 °C, derating < 0 °C and > 40 °C
    Cooling vario fan
    Protection degree IP23, vertical mounting
    Protections over-temperature, overload, short circuit, high/low battery voltageover-temperature, overload, short circuit, high/low battery voltage, ignition protection
    MasterBus compatible yes
    Charger Status Interface (alarm contact) yes, using a Multipurpose Contact Output (code 77030500)


    What's in the Box:

    • Chargemaster Plus 24/30-3
    • Temp Sensor
    • Wall Bracket
    • Drop cable CZone/MB (1m)
    • MasterBus Terminator
    • User and installation manual.
  • Owners ManualView (pdf)
