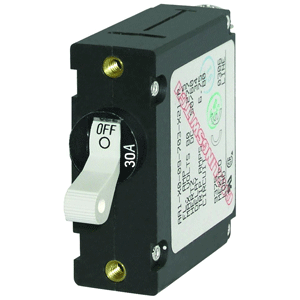

Blue Sea AC / DC Single Pole Magnetic World Circuit Breaker 30A White 7222
Blue Sea AC / DC Single Pole Magnetic World Circuit Breaker 30A White 7222



Brand New with Factory's Warranty
List Price: US$24.14
Our Price: US$13.99
You save US$10.15!



Availability:: Usually ships the next business day
Product Code: 7222

Description Extended Information

  • Meets American Boat and Yacht Council (ABYC) standards
  • UL 1077 recognized, TUV certified, CE Marked for Europe, and CSA certified for Canada
  • The industry standard circuit breaker for Blue Sea Systems' electrical panels
  • Combines swtiching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition

Specifications

Trip Time Delay See trip delay curve
Interrupt Rating See interrupt rating table
Maximum Voltage Rating See interrupt rating table
Operating Temperature Range -40°C to +85°C
Terminal Screw #10-32 SS with external tooth lock washer - Recommended torque 14-15 in-lb
Rated Switch Cycles 10,000 @ rated amperage and voltage
Mounting Screw #8-32 - Recommended torque 6-8 in-lb
Circuit Breaker Type Magnetic Hydraulic - trip free
Weight Lb (Kg) 0.17 (0.08)

Certifications & Agency Standards

  • CE Marked
  • TUV Certified
  • CSA certified
  • UL 1077 recognised

Interrupt Rating Table
