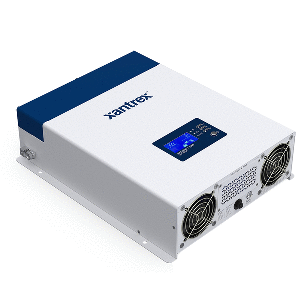

Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter
Xantrex Freedom X2000-12 2000W 230V True Sine Wave Inverter

Brand New with Factory's Warranty
List Price: US$1,523.00
Price: US$789.00
You save US$734.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: 817-2000-12

Description


Xantrex Freedom X 2000 230v 2000W Inverter

Model: 817-2000-12

  • Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input
  • Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
  • Documentation
    Data Sheet XAN817200012_DataSheet.pdf

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02)

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20°C - 40°C for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications

ELECTRICAL SPECS - INVERTER
AC Output Operating Voltage Options 220/230/240V
Continuous Output Power Continuous Power 2000 W @40 C True sine wave (TSW)
Continuous AC Output Current 8.3 A
Surge Power 4000 W (> 2 sec)
Frequency (Configurable) 50 Hz (or 60 Hz)
DC Input Operating voltage range 10.0 - 17.0 V
DC Input Max Non-Operating Voltage 25.2 V
DC Input Nominal Voltage (inverting) 12.0 V
DC Nominal Current at Full Load 192 A
Peak Efficiency 91%
Full Load Efficiency > 87.5%
GENERAL SPECS
Operating Temperature Range -20 to 60 C, with output derated above 40 °C
Storage Temperature Range -40 to 70 C
Operating Humidity Range 5 to 95% RH, non-condensing
Operating Input AC Pass-Through Voltage Range 170-280V
Safe Non-Operating Input AC Voltage Range Up to 300V
Transfer Relay AC Current Rating 30 A , 24 A continous
L x W x H (without flanges) 370 mm x 275 mm x 100 mm
L x W x H (with flanges) 370 mm x 305 mm x 100 mm
Net Weight 7.2 kgs
REGULATORY APPROVALS
Safety CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050)
EMC CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant
Environmental CE Marking, RoHS Directive Compliant


What's in the Box:

  • Freedom X 2000 230v
  • Documentation
  • one set of plastic bushings for large DC cables
  • one pre-installed DC earth enclosure lug (not shown)
  • one bonding screw
