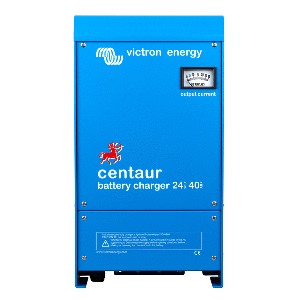

Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC
Victron Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC



Brand New with Factory's Warranty
List Price: US$933.00
Our Price: US$776.05
You save US$156.95!



Availability:: Usually ships the next business day
Product Code: 82835

Description Extended Information


Centaur Charger - 24 VDC - 40AMP - 3-Bank - 120-240 VAC

Features:

  • Quality without compromise - Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
  • Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
  • The chargers also accept a 90-400 V DC supply.
  • Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
  • Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries
  • Quick Guide View (pdf)

Brochure



Datesheet

Manuals



Quick Installation Guide



Technical Information



Note: The price is subject to change at any time without any notice. Not responsible for any typographical errors. Any products can be cancelled from sale at any time.
  • All products sold here come with Full Manufacturer's Warranty
  • Email us at
  • [email protected] for any quesitons
  • WarningWARNING: This product can expose you to chemicals including Di-n-hexyl Phthalate, DnHP, which is known to the State of California to cause reproductive harm, and Vinyl Chloride which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
