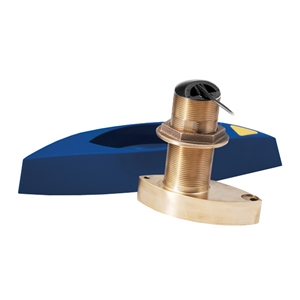

Airmar B785C-M Single Band CHIRP Thru Hull Transducer

Home > Electronics > Fish Finder & Sonar Scanner > Airmar Sonar Transducers > Airmar Thru Hull Transducer >

Alternative Views:

Brand New with Factory's Warranty

List Price: US$1,177.00

Our Price: US$899.00

You save US$278.00!

Availability:: Usually ships the next business day
Product Code: B785C-M

Plotter Model

Type in Plotter/Sounder Model Name*:

Description

Extended Information

600 W

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Depth and fast-response water-temperature sensing
600 W of power
Medium frequency: 80 to 130 kHz
- 24° to 16° beamwidth
- Maximum depth of 274 m (900')
50 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
Recommended for use on planing or displacement hull
Bronze housing with High-performance Fairing for optimal performance at higher speeds
Also available in a low-profile, thru-hull (B75M) mount
Patented Xducer ID^® technology

Brand: Airmar Technology

Acoustic Window: Urethane

Cable-Length: 10 m (33')

Common Use: Leisure/Yachting, Fishing

Connector: Bare Wire

Country of Origin: USA

Deadrise Range: Up to 25° with fairing

Frequency Band: Medium

Functions: Depth, Temperature

Hole Size: 51 mm (2")

Hull Material: Fiberglass or wood

Material: Bronze

Max Deadrise: Up to 24° with fairing

Max Deadrise Angle: 24°

Max Depth: 274 m (900')

Max Vessel LOA: Up to 9 m (30')

Medium Frequency: 80-130 kHz

Medium Frequency Beamwidth: 24°-16°

Mix and Match Series: 12-Pin Chirp

Mounting Style: Thru-Hull with Fairing

Power Rating: 600 W

Sensor Connector: MMC

Single or Dual Frequency: CHIRP-Ready Single-Band

Tilted Element: No

Usable Shaft Length: 121 mm (4.75")

Weight: 2.5 kg (5.5 lb.)

BrochureSingleband-Chirp-CompChart

DimensionsD-92-203-02

DimensionsD-92-238-01

DimensionsD-92-238-02

InstallationD-17-280-03

InstallationD-17-438-01

InstallationD-17-573-01

InstallationD-19070

InstallationD-17-276-01

Installation17-438-01-French

Installation17-438-01-Italian

Installation17-438-01-Spanish

InstallationHigh-Performance-Fairing-17-276-01-English

InstallationHigh-Performance-Fairing-17-276-01-French

InstallationHigh-Performance-Fairing-17-276-01-Italian

InstallationHigh-Performance-Fairing-17-276-01-Spanish

WiringD-20619

WiringD-91-1391
