Icom M510 EVO VHF with AIS & NMEA 2000

Home > Communication > Mounted VHF Radio > Icom VHF Radio >

Brand New with Factory's Warranty

List Price: US$1,499.00

Price: US$949.95
Free Ground shipping to Lower 48 States

You save US$549.05!

Availability:: Usually ships the next business day
Product Code: C102973

Description

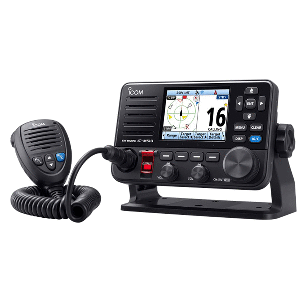

IC-M510 EVO VHF

The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology. Its built-in class D DSC provides essential maritime communication, supporting safety on the water. Integration with built-in NMEA 2000™ connectivity and two-way hailer/RX hailer functions enhances the experience at sea even more.

Simple remote control through a smart device enables an unprecedented onboard communication experience. In addition, the product features a color display, navigation functions, and a stylish design that won an iF design award. It can be used for pleasure boats, fishing boats, and sailing, as well as in rescue and public safety.

*AIS receiver not included in the M510 EVO 41

NMEA 2000™ and Loud 25 W Two-Way Hailer/20 W RX Hailer Now Built-in

The NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment, such as an MFD (Multi-Function Display). The radio can send GNSS (GPS) position, AIS information*, DSC call, and radio channel data to other equipment.

When connected to the optional SP-37 speaker horn, users can talk with the crew on the deck or shore via the radio's microphone and hear any reply via the horn speaker. The RX hailer function lets users listen to the radio traffic on the deck or tower through the hailer speaker. Users can also sound foghorn patterns from the hailer speaker.

Radio Control & Intercom Through Smart Devices

Use the RS-M500 app (for iOS/Android) to wirelessly control the IC-M510 EVO through the radio’s WLAN feature. Users can use up to three smart devices as a wireless microphone, an intercom between a device and the M510, and a simple remote control for specific functions.

Award Winning Sleek Design - iF DESIGN AWARD 2022

The IC-M510 series (including the IC-M510 EVO) is a winner in the world-renowned iF DESIGN AWARD 2022. The radio can be installed in either panel or trunnion mounting and has a sleek design that looks great on a boat's black glass cockpit dashboard.

Wide Viewing Angle Color TFT LCD

The color TFT LCD provides nearly a 180-degree viewing angle. The wide-viewing-angle display has high-resolution characters and function icons. Hold down the DISP key to switch to the night mode screen, ensuring good readability in low-light conditions.

Built-in Class D DSC, “Distress” Button Can be a Lifesaver in an Emergency Situation

With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

15 W Speaker Provides Clear and Loud Audio

The built-in waterproof speaker enhances the received audio and provides powerful, clear audio.

Simplified Navigation Function

The navigation function guides users to a specified waypoint or AIS target. Users can assign up to 100 destinations as waypoints, such as favorite fishing spots or starting positions for yacht races.

Combined with MA-510TR Supports Safer Navigation

When connected to the optional MA-510TR Class B AIS transponder, users can send and receive real-time information about vessels, including identity, position, speed, course, and other relevant data, displayed on the screen. Making a vessel's position known to others helps prevent collisions and accidents, especially at night, in rough weather, or on crowded shipping routes. The MA-510TR enhances safety during navigation at sea.

Active Noise Canceling Technology

The Active Noise Cancelling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

Other Features:

Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
IP68 advanced waterproofing (1 m depth of water for 60 minutes)
Voice Scrambler with optional UT-112A
AquaQuake™ prevents audio degradation from a water-logged speaker
The supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet the user's requirements
External speaker connection
Optional HM-195 CommandMic™ are available
Supports 4-digit channels
Supplied a waterproof flash mount gasket for panel mount

General

Frequency range		TX	156.025 ~ 157.425 MHz
		RX	156.050 ~ 163.275 MHz
		DSC	156.525 MHz
		AIS1, 2* ¹	161.975, 162.025 MHz
Usable channels			USA, CAN, INT, WX channels
Type of emission			16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)* ¹
Power supply requirement			13.8 V DC (11.7 ~ 15.9 V DC)
Current drain (at 13.8 V DC)	TX 25 W output		5.0 A
Current drain (at 13.8 V DC)	RX Max. audio		1.6 A 2.0 A (with HM-195) 4.0 A (with extSP) 7.3 A (with ext SP, RX hailer, and HM-195)
Operating temperature range			–20°C ~ +60°C, –4°F ~ +140°F
Antenna impedance			50 Ω
Dimensions (W x X x D)			175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in
Weight (approx.)			730 g, 1.6 lb (not including microphone)

Transmitter

Output power (at 13.8 V DC)		25 W, 1W
Max. frequency deviation		±5 kHz
Frequency tolerance		±0.5 kHz
Spurious emissions		Less than −70 dBc (at 25 W)
Residual modulation		More than 40 dB
Adjacent channel power		More than 70 dB

Receiver

Sensitivity (at 12 dB SINAD) DSC (1% BER)		–10 dBμ typical –1 dBμ emf typical
Adjacent channel selectivity DSC (1% BER)		More than 75 dB More than 73 dBμ emf
Spurious response DSC (1% BER)		More than 75 dB More than 73 dBμ emf
Intermodulation DSC (1% BER)		More than 75 dB More than 68 dBμ emf
Hum and noise		More than 40 dB
Audio output power (at 10% distortion with 4 Ω)		More than 15 W (external speaker) 20 W typical (RX Hailer) 25 W typical (Hailer)

Wireless LAN

Wireless LAN standard	IEEE802.11 b/g/n
Authentication and Encryption	WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES)
Channels	1 to 13 (2.4 GHz band)* ²
Output power	Less than 10 mW/MHz

*1 Only for the Integrated AIS version. *2 May differ depending on the country of use.
Measurements made in accordance with TIA/EIA 603.
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G
Standard	Method	Procedure
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain	506.5	I
Humidity	507.5	II
Salt Fog	509.5	-
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Applicable IP Rating

Ingress Protection Standard
Dust & Water	IP68 Dust-tight and waterproof protection

Supplied Accessories

Speaker microphone, HM-205RB
Microphone hanger
DC power cable
Mounting bracket kit
Flash mount gasket

Catalogs / Brochures

Brochures Name	Size
Marine Products	7.38MB
IC-M510 EVO	2.89MB
Marine Catalog 2025	5.16MB

Instruction Manual / Guides


Name	Model Name	Note
Instruction Manual	IC-510_M510E_EVO_ENG_IM_0
Instruction Manual	IC-M510/IC-M510E
ABOUT THE MMSI CODE	IC-M510/IC-M510E EVO
