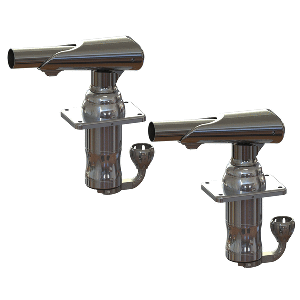

Grand Slam 300 Outrigger Mount for 1-1/2" Outrigger

Single-Handle Operation is Here! Introducing the Grand Slam 300 – a stainless-steel / polished, anodized aluminum, single-handle Outrigger Mount that delivers enhanced safety and performance with smooth, one-handed operation from the deck. Easily adjust rotation and lift of outrigger poles using the GS-300's ergonomic crank handle, which locks flush into the base. The Mount's attractive, all-metal design means no plastic components, a greater water seal, and increased protection from the elements. The GS-300 pairs with TACO’s award-winning Open Water Internal & Collapsible Carbon Fiber Outrigger Poles, as well as Aluminum or Carbon Fiber Tele-Outrigger Poles up to 22' with an underside pin-locking connection – eliminating the need for port and starboard designations.

Features & Benefits:

PIN-LOCKING ARM

• No port or starboard designation
• Underside locking pin connection
• Arm lifts to 46.5º from the horizontal position for kite fishing and dock clearance
• Pairs with 1-1/2" DIA Outrigger Poles up to 22'
• Can be used with Outrigger Base Reducer for 1-1/8” DIA poles

HANDLE

• Stainless-steel, ergonomic, single-hand crank handle with ball bearing
• Enables lift and rotation of outrigger poles from the safety of the deck
• Unique, locking flip handle
• Keeps the handle knob on the bottom when lifting or rotating the outrigger
• Provides full torque control and safety of deployment at all times
• Robust, dual-detented lifting crank handle locks flush into base

MOUNT

• Ideal for boats 25' to 40'
• Constructed from cast stainless steel and machined aluminum for a stronger, lighter base
• Each mount weighs 15 pounds (30 pounds per pair)
• Safety detents prevent uncontrolled rotation when deploying outrigger poles
• Allows a controlled 180° rotation, if needed
• The locking head eliminates the downward creep of outrigger poles
• Equipped to handle the torque and whip generated by poles up to 22’
• Includes mounting hardware for easy installation
• The base hole pattern matches all TACO Marine Grand Slam models, as well as the industry standard hole patterns of other top-mount outrigger systems
• Backing plates (BP-0300) sold separately
• 3-year limited warranty

• Quick Guide

  View (pdf)

Specifications:

• Weight: 30lbs
• Sold as a pair
