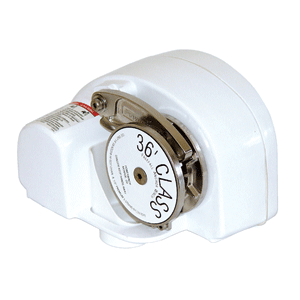

Powerwinch 36' Class Windlass Freefall 775 Lb Pull for 1/4" Chain & 1/2" Line
Powerwinch 36' Class Windlass Freefall 775 Lb Pull for 1/4" Chain & 1/2" Line



Brand New with Factory's Warranty
List Price: US$795.00
Our Price: US$639.00
You save US$156.00!


Availability:: Usually ships the next business day
Product Code: C16602

Description


Documents

Manual and Parts List

Automatic Helm-Operated Free-Fall Windlass

The Safest Way to Anchor !

1. Patented Free-Fall System anchors up to 300'/min – Up to four times faster than powering down
2. Exclusive stainless steel rope & chain guidance system – Durable materials stand up to years of use
3. Ultra smooth motor uses less amps – Free-fall does not need battery power so it preserves your battery
4. Built with durable stainlesssteel fasteners – Resists corrosion for easy removal
5. Watertight seals – For additional protection against corrosion
6. One piece motor plate – For smooth power transmission & improved gear life
7. Heat treated oil-impregnated gear systems –Smoother operation, resists corrosion, lasts longer
8. Stainless steel drive shafts – For years of smooth, reliable performance
9. Replaceable Rode-Glide – Smoothly channels rope and chain below deck
10. Use tapered back splice – For smooth rope-to-chain transition

Model Sport Fish 450 P77727 Class 31' P77731 Class 36'
P77736
Class 41'
P77741
Class 46'
P77746
Boat Size Up to 27 feet Up to 31 feet Up to 36 feet Up to 41 feet Up to 46 feet
Pulling Power 450 lbs 625 lbs 775 lbs 900 lbs 1100 lbs
Retrieval Speed 70' / minute 80' / minute 80' / minute 75' / minute 70' / minute
Anchoring Speed Up to 150' / minute Up to 200' / minute Up to 250' / minute Up to 300' / minute Up to 350' / minute
Line Size & Type (required) 1/2" Powerwinch Premium Medium
Lay Nylon
1/2" Powerwinch
Premium Medium
Lay Nylon
1/2" Powerwinch
Premium Medium
Lay Nylon
5/8" Powerwinch
Premium Medium
Lay Nylon
5/8" Powerwinch
Premium Medium
Lay Nylon
Chain Size & Type (required) 1/4" Hi-test ACCO G4 1/4" Hi-test ACCO G4 1/4" Hi-test ACCO G4 5/16" Hi-test ACCO G4 5/16" Hi-test ACCO G4
Rodes (sold separately) P10293-P10296 P10293-P10296 P10293-P10296 P10297-P10300 P10297-P10300
Rope & Chain System Metal Alloy Stainless Steel Electro-Plated
Stainless Steel
Electro-Plated
Stainless Steel
Electro-Plated
Stainless Steel
Replaceable Rode-Glide Engineered Resin Engineered Resin Engineered Resin Engineered Resin Engineered Resin
Helm Operated Control Switch Rocker Rocker Rocker Rocker Rocker
Avg. Amp Draw
(during retrieval)
8-10 amps 8-12 amps 8-12 amps 10-14 amps 14-18 amps
Install Kit P55800 P55800 P55800 P55600 P55600
Required Wire Size to Battery 8 gauge (50' run)
6 gauge (over 50' run)
8 gauge (50' run)
6 gauge (over 50' run)
8 gauge (50' run)
6 gauge (over 50' run)
6 gauge (70' run) 6 gauge (70' run)
Standard Equipped Thermal Circuit Breaker 25 amp auto reset 25 amp auto reset 25 amp auto reset 25 amp auto reset 60 amp auto reset
Manual Reset Circuit Breaker (optional) Optional 25 amp
P1070400AJ
Optional 25 amp
P1070400AJ
Optional 25 amp
P1070400AJ
Optional 25 amp
P1070400AJ
P1064800AJ
Dual Switch Solenoid Optional
P1028200AJ
Optional
P1028200AJ
Optional
P1028200AJ
Optional
P1028200AJ
Included
Unit Weight (lbs) 21 22 22 23 24
Overall unit Dimensions 10-9/16" L x 7" W
x 6-5/16" H
10-9/16" L x 7" W
x 6-5/16" H
10-9/16" L x 7" W
x 6-5/16" H
10-9/16" L x 7" W
x 6-5/16" H
10-9/16" L x 7" W
x 6-5/16" H
Warranty 2 years 2 years 3 years 3 years 3 years
