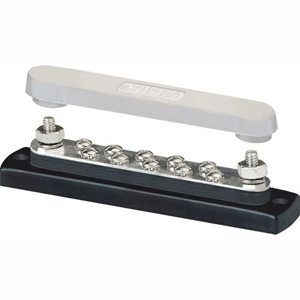

Blue Sea 2300, 150 Ampere Common BusBar 10 x No. 8-32 Screw Terminal with Cover
Blue Sea 2300, 150 Ampere Common BusBar 10 x No. 8-32 Screw Terminal with Cover



Brand New with Factory's Warranty
List Price: US$39.57
Our Price: US$21.83
You save US$17.74!



Availability:: Usually ships the next business day
Product Code: C20218

Description Extended Information

150 Ampere Common BusBar 10 x #8-32 Screw Terminal with Cover

PN: 2300

  • Stud design provides direct terminal to bus contact for low resistant connection
  • Stainless steel studs and screws allow high torquing for excellent electrical contact
  • Tin-plated copper bus for maximum conductivity and resistance to corrosion
  • UL 94-VO rated (self extinguishing) base material resists high heat
  • Press on insulating cover attaches to studs and allows unobstructed wire access
  • Raised bus provides easy access to multiple wires on a single screw


Continuous Amperage 130 Amperes AC
150 Amperes DC
Maximum Voltage Rating 300 Volts AC
48 Volts DC
Bus Material Tin-Plated Copper CDA 110/UNS11000
Base Material Glass Reinforced Polycarbonate
Cover material Polycarbonate
Studs Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws Stainless Steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight 0.34Lb
