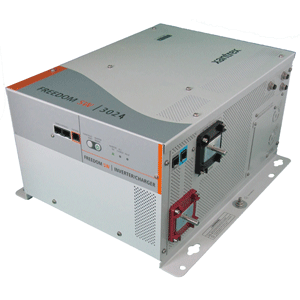

Xantrex Freedom SW3024 Pure Sinewave Inverter Charger, 3000W, 24V 110V Out 815-3024

Home > Electrical Supply > Inverter Charger > Inverter Charger ( 110V AC to 24V DC) >

Brand New with Factory's Warranty

List Price: US$5,618.00

Price: US$2,229.00
Free Ground shipping to Lower 48 States

You save US$3,389.00!

Availability:: Usually ships the next business day
Product Code: C43737

Description

Extended Information

Xantrex Freedon SW3024 Inverter/Charger
815-3024

24V, 3000W - 120 Vac / 60 Hz

Powerful. Configurable. Versatile...

The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

Product Description
The second generation 3000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

NEW - PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output²

² AC source must be split phase, requires Stacking Cable (part# 808-9005)

Application
Designed for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

Product Features

Pure sine wave output to operate sensitive electronics
Advanced configuration options for customized applications
Parallel and series stacking capability
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Power factor corrected, multi-stage charger for fast, efficient charging
Temperature compensated charging for a vareity of climate conditions
Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power³
Wide operating temperature range: -4°F to 140°F (-20°C to 60°C)
Conformal coated circuit boards for humid environments
Dual input / Dual output AC interface for 3000 W model
Ability to charge batteries drained to extremely low voltage
Compatible with the Xantrex Automatic Generator Start⁴ (Part# 809-0915)

³When used with the remote panel
⁴Sold separately

Protection Features

Battery over-voltage and under-voltage protection
Over-temperature shutdown
Automatic overload protection
Short-circuit protection
Integrated, resettable AC breakers

Quick Guide	View (pdf)
Owners Manual	View (pdf)

Electrical Specifications Inverter
Output power (continuous at 40°C)	3000 W
Surge rating (5 seconds)	6000 W
Peak output current	75 A
Output frequency	60 Hz +/- 0.2 Hz
Output voltage	120 Vac
Output wave form	Pure sine wave
Optimal efficiency	94%
No-load power draw (inverting)	< 1.5 Adc
Input DC voltage range	20 - 32 Vdc
AC connections	Split phase in / dual out
Electrical specifications charger
Output current (continuous at 25°C)	75 A
Output voltage	24 Vdc
Output voltage range	12 - 32 Vdc
Charge Control	3 stage with manual equalize
Charge temperature compensation	Remote battery sensor (included)
Efficiency	> 85%
AC input power factor (maximum charge)	0.95 typical
Input current (for maximum charging)	22 A rms nominal
Input AC voltage	120 Vac
Input AC voltage range	85 - 140 Vac
Dead battery charge	> 12 Vdc
General Specifications
Compatible battery types	Flooded / Gel / AGM
Transfer relay rating	2 legs at 30 A each
Transfer time (AC to inverter and inverter to AC)	< 20 ms
Operating temperature range (full power)	- 4°F to 104°F (- 20°C to 40°C)
Storage ambient temperature range	- 40°F to 185°F (- 40°C to 85°C)
Unit dimensions (H x W x L)	7.75 x 13.5 x 15.25" (197 x 343 x 387 mm)

What's in the Box:

SW3024
Documentation
battery Temperature sensor
DC terminal covers (one red, one black) with two sets of #6-32 screw
Xanbus network terminator x 2
5/16"-18 nuts and washers for the DC terminals x 2

Xantrex Freedom SW 24 Model Inverter Charger

Xantrex Installation Guide for Inverter Charger I

Xantrex Installation Guide for Inverter Charger II
