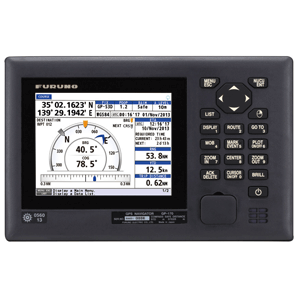

Furuno GP170 IMO GPS Navigator
Furuno GP170 IMO GPS Navigator



Brand New with Factory's Warranty
List Price: US$2,895.00
Our Price: US$2,395.00
You save US$500.00!




Availability:: Usually ships the next business day
Product Code: C57504

Extended Warranty

2 Year Extended Warranty under $2500 [Add US$149.99]
4 Year Extended Warranty under $2500 [Add US$249.99]
No Extended Warranty
Description Extended Information


Features

▶ Ideal position sensor for Radar, AIS, ECDIS, autopilot, echo sounder and other navigation and communications equipment
▶ Full compliance with IMO MSC. 112 (73) and IEC 61108-1: performance and testing standards for GPS receiver
▶ Enhanced stability and precision in position fixing thanks to a highly sensitive antenna unit

Enhanced noise rejection capabilities are incorporated in the GPS receiver, delivering anti-jamming function as well as high level of tolerance towards multi-path mitigation*

* the Antenna unit GPA-020S or GPA-021S is required

▶ Augmentation to enhance precision by utilizing SBAS (Satellite-Based Augmentation System) and DGPS (an optional DGPS radio beacon receiver as well as GPA-021S antenna unit required)
▶ Fully complies with IMO MSC. 114 (73) and IEC 61108-4: performance and testing standards for DGPS radio beacon receiver
▶ 10 Hz position update rate (position updated every 0.1 second) making steady own ship position tracking possible
▶ USB port available on the front panel

Routing data, menu setting, user setting can be exported/imported through USB jump drives

▶ Dual configuration for back-up purpose to ensure system availability

Information about waypoints, route and other data set by the operators on the one unit can be shared with the other unit for functional back-up

▶ LAN interface available for efficient network integration into a bridge system, fully complying with IEC 61162-450, the new mandatory Ethernet communication standard
▶ 5.7” color LCD (with 640 x 480 pixels) for data presentation
▶ Simplified menu operation

The operator can navigate through the menu tree either by pressing the cursor pad or pressing the corresponding numbers on the numeric keypad to the menu items

▶ Enhanced route planning/management function available
  • Comprehensive range of voyage information to be incorporated in routes
  • Streamlined route creation through combination with an external PC
  • Sharing the active route information with ECDIS to supplement the ECDIS route monitoring capability

Display Mode

▶ Variety of display modes available: Plotter, Course, Highway, Data and Integrity

表示画面

  • (A) Basic positioning data such as own ship position data, its data integrity, time, etc., are presented. Also, display mode as well as notice icons are displayed.
  • (B) The area shows the information specific to the display mode currently selected. Please refer to each of the display modes for details.
  • (C) Guide to currently available actions is displayed. Under alert situation, the information about the most imminent alert is displayed.

Plotter

Plotter

Information to be displayed:

  • Simplified plotter display
  • Cursor information
  • Contextual menu
  • SOG/COG data boxes
Integrity

Integrity

Information to be displayed:

  • Skyplot presentation of currently viewable satellites
  • Status on GNSS/SBAS satellite signal reception; incl.
    signal strength/signal to noise ratio (in bar/line charts)
  • Elevation angles of the available satellites
  • Detailed information about the beacon stations
Highway

Highway

Information to be displayed:

  • Course information
  • SOG/COG data boxes
  • User-preset cross track limit of deviation (XTE)
  • Own ship gauge, showing the attitude of the ship, incl. pitch, roll and heave
Course

Course

Information to be displayed:

  • Graphical presentation of course information, incl. current waypoint, bearing to the destination, COG, XTE
  • Estimated Time of Arrival data box, incl. required time to reach the current/next waypoints and range to the waypoint*
    * when autopilot is interfaced, the following information is shown in the data boxes: Autopilot status data box, incl. mode, ship’s heading, rudder angle, and COG, and SOG data box.
  • Velocity to destination
  • Trip distance data
Data

Information to be displayed:

Information to be displayed:

  • Navigation data boxes configurable according to the needs of the operators

Interconnection Diagram

▶ For new building

*Specify when ordering
**Selectable when DGPS beacon receiver is incorporated into the Display Unit GP-170.

▶ For retrofitting

*Specify when ordering. The GPA-019S from the GP-150 previously installed can be used. If type-approved DGPS is required, please replace it with GPA-021S.
**Selectable when DGPS beacon receiver is incorporated into the Display Unit GP-170.
