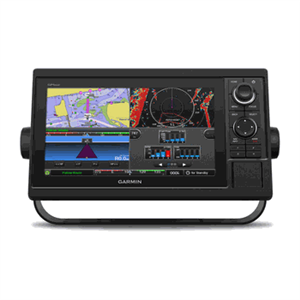

Garmin GPSMAP 1022 10" Keyed Networking Chartplotter with Worldwide Basemap - No Sonar 010-01740-00
Garmin GPSMAP 1022 10" Keyed Networking Chartplotter with Worldwide Basemap - No Sonar 010-01740-00



Brand New with Factory's Warranty
List Price: US$1,299.99
Our Price: US$1,299.99




Availability:: Usually ships the next business day
Product Code: C63438

Extended Warranty

2 Year Extended Warranty under $1500 [Add US$69.99]
4 Year Extended Warranty under $1500 [Add US$129.99]
No Extended Warranty

Description Extended Information


10-inch Chartplotter Is All-in-1 Solution

  • 10-inch color display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support
  • Supports optional BlueChart® g3 Vision® HD charts for Auto Guidance and other premium navigation features

GPSMAP 1022 is designed for cruisers, sailors and sailing racers who need the advanced all-in-1 solution provided by our 10-inch keyed chartplotter. Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in Wi-Fi® and ANT® Connectivity

You also enjoy built-in Wi-Fi and ANT wireless connectivity directly to quatix ® marine watches, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB action camera from the chartplotter.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g3 HD or BlueChart® g3 Vision®

HD, which adds Garmin patented Auto Guidance¹ and other great features.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Physical & Performance

Physical dimensions 12.5" x 7.3" x 2.7" (318 x 185 x 69 cm)
Display size, WxH 8.8" x 4.9" (224 x 125 cm)
Display resolution, WxH 1024 x 600 pixels
Display type WSVGA display
Weight

4.1 lbs (1.85 kg)

Antenna Internal or external over NMEA 2000
NMEA 2000® compatible
NMEA 0183 compatible
SiriusXM™ Weather & Radio compatible
Power consumption

Max power usage at 10 Vdc: 32.4 W

Typical current draw at 12 Vdc: 1.9 A

Max current draw at 12 Vdc: 2.7 A

Mounting options Bail or flush
Garmin Marine Network™ ports

2

Maps & Memory

Preloaded maps None
Accepts data cards 2 SD™ cards
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks

Chartplotter Features

Garmin Radar compatible
Garmin Sonar compatible

Yes (with external black box, sold separately)

Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor™ Audio System compatible
Supports FUSION-Link™ compatible radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible

Sonar Features & Specifications

CHIRP sonar technology Yes (with external black box)
ClearVü

Yes (with external black box, sold separately)

SideVü

Yes (with external black box, sold separately)

Connections

NMEA 0183 input ports

1

NMEA 0183 output ports

1

Video input ports

1 BNC

Video output ports None
Wireless connectivity

IN the box

  • GPSMAP 1022 chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation

Manuals for GPSMAP® 1022


Manual Name Revision Revision Date Part Number Action
Flush Mount Template A Oct 2016 190-02145-04 Download
Installation Instructions (PDF) B Jan 2017 190-02145-02 Download
Owner's Manual (PDF) A Dec 2016 190-02145-00 Download
Important Safety and Product Information E Jan 2016 190-00720-32 Download
