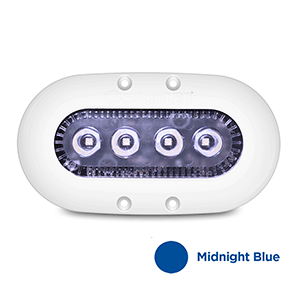

OceanLED X-Series X4, Midnight Blue LEDs 012302B

Home > Electronics > Marine Instruments > Underwater Light > OceanLED Underwater Light >

Brand New with Factory's Warranty

List Price: US$220.00

Our Price: US$179.00

You save US$41.00!

Availability:: Usually ships the next business day
Product Code: C64268

Description

Extended Information

Overview

With a wide choice of sizes and colours, the X-Series offers a range of mounting and colour options to help create your perfect light show and enjoy more time on the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.

Features

60° Side Beam Angle
Up to 1150 Fixture Lumens
60° Top Beam Angle
Circular Beam Angle
Compact and simple design
Simple to install
Easy to clean
Fish-Strobe Mode
Active Thermal Control

Technical

Lumens	1450
Fixture Lumens	1150
Typical LED life expectancy	40,000+ Hours
Minimum-Maximum operating voltage DC	9-32V DC
Current / Amp draw (DC)	12V DC 0.8A 24V DC 0.4A
Approx. light penetration (avg. water quality)	20’ (6m)
Approx. Light penetration (perfect water quality)	up to 45’ (13+m)
Driver type	Internal, Reverse Polarity Protected

Mounting Recommendations

Boat size	up to 30’ (9m)
Transom / Hull spacing	2-3’ (0.5-1m)
Transom quantity	2-4
Installation depth (to top of fixture)	4-8” (10-20cm)

Physical

Total weight	350g (0.78lbs)
Extension cable length (standard)	9.84’ (3m)
Hole cut-out for cable entry	0.5” (12.5mm)
Material	Chemically resistant optical polymer
