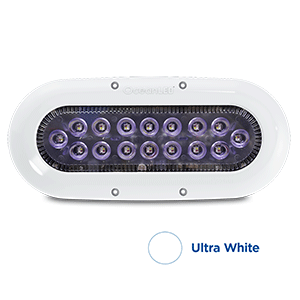

OceanLED X-Series X16, White LEDs 012308W

Home > Electronics > Marine Instruments > Underwater Light > OceanLED Underwater Light >

Brand New with Factory's Warranty

List Price: US$607.00

Our Price: US$409.00

You save US$198.00!

Availability:: Usually ships the next business day
Product Code: C64272

Description

Extended Information

Overview

With a wide choice of sizes and colours, the Xtreme Series offers a range of mounting and colour options to help create your perfect light show and enjoy more time on the water.

Features

60° Top Beam Angle
Up to 4500 Fixture Lumens
60° Side Beam Angle
Circular Beam
Compact and simple design
Simple to install
Easy to clean
Fish-Strobe Mode
Active Thermal Control

Technical

Lumens	5800
Fixture Lumens	4500
Typical LED life expectancy	40,000+ Hours
Minimum-Maximum operating voltage DC	9-32V DC
Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum)	12V DC 3.2A / 24V DC 1.5A
Approx. light penetration (avg. water quality)	40’ (12m)
Approx. Light penetration (perfect water quality)	up to 100’ (30+m)
Driver type	Internal

Mounting Recommendations

Boat size	up to 30’ (9m)
Transom / Hull spacing	2-3’ (0.5-1m)
Transom quantity	2-6
Installation depth (to top of fixture)	4-8” (10-20cm)

Physical

Total weight	860g (1.90lbs)
Extension cable length (standard)	9.84’ (3m)
Hole cut-out for cable entry	0.5” (12.5mm)
Material	Chemically resistant optical polymer
