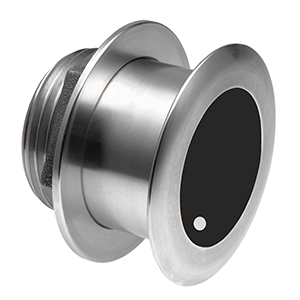

Navico XSONIC SS175H-W/12 Stainless Steel Thru-Hull Transducer - 12 Deg - 9-Pin 000-13781-001
Navico XSONIC SS175H-W/12 Stainless Steel Thru-Hull Transducer - 12 Deg - 9-Pin 000-13781-001



Brand New with Factory's Warranty
List Price: US$1,699.00
Our Price: US$1,319.00
You save US$380.00!



Availability:: Usually ships the next business day
Product Code: C66096

Description Extended Information


1 kW

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready SS175HW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band delivers superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 152 m (500').

Tilted Element transducers have the element fixed at either a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The SS175HW is available in three Tilted Element models:

  • Fixed 20° tilted version for 16 to 24° hull deadrise angles
  • Fixed 12° tilted version for 8 to 15° hull deadrise angles
  • Fixed 0° tilted version for 0 to 7° hull deadrise angles

  • Depth and fast-response water-temperature sensing
  • 1 kW of power
  • High frequency: 150 to 250 kHz
    • Constant 25° beamwidth
    • Maximum depth of 152 m (500’)
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • Low-profile, thru-hull housing provides good display resolution at speed when installed properly
  • Recommended for stepped, planing, or displacement hull
  • Stainless steel housing for use in all hull materials
  • Also available in a bronze housing (B175HW) and as thru-hull with fairing (B285HW), transom (TM185HW), and in-hull (M285HW) mounts
  • Patented Xducer ID® technology

Brand: Airmar Technology
Acoustic Window: Urethane
Cable-Length: 9 m (30')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
Display Connector: Cable Required
Frequency Band: High Wide
Functions: Depth, Temperature
High Frequency: 150-250 kHz
High-Wide Beamwidth: 25°
Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
Hull Material: Compatible w/ all hull materials
Material: Stainless Steel
Max Deadrise: Up to 24°
Max Deadrise Angle: 24°
Max Depth: 150 m (500')
Max Vessel LOA: Up to 11 m (36')
Mix and Match Series: 12-Pin Chirp
Mounting Style: Tilted Element Thru-Hull
Power Rating: 1 kW
Retractable housing: No
Sensor Connector: MMC
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilt Angle: 0 12 or 20 deg available
Tilted Element: Yes
Weight: 2.7 kg (6 lb.)
