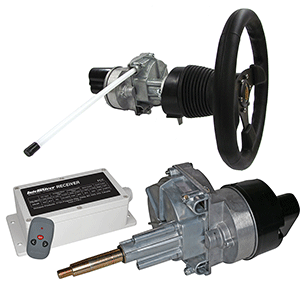

Intellisteer Type T for Helms with Tilt Function for Cable Steered Boats with Dash Mounted Wheel
Intellisteer Type T for Helms with Tilt Function for Cable Steered Boats with Dash Mounted Wheel



Brand New with Factory's Warranty
List Price: US$995.00
Our Price: US$889.00
You save US$106.00!



Availability:: Usually ships the next business day
Product Code: C66500

Description Extended Information


No Steering Wheel & Steering Helm Included

Type T for Helms with Tilt Function for Cable Steered Boats with Dash Mounted Wheel

Features:
  • Replaces existing helm
  • Electronic clutch disengages for manual steering
  • Rotary drive system
  • Fits behind dash
  • Safety override technology
  • Current 1.25A Typical, 5A Peak
  • Wireless control module plus handheld pendant - steering in the palm of your hand
  • Steer, fish and cruise from anywhere on the boat
  • Easy DIY installation - no need for professional installer
  • 2 Year limited warranty - purchase with confidence
Specifications:
Wireless Controller & Receiver
  • Meets FCC standards
  • Additional Handheld and receiver can be paired in field
  • Pendant and receiver auto-off in 30 minutes if no usage
  • Over 1 Million control codes provide enhanced security
Handheld Pendant
  • Water proof
  • Supplied with 2xAAA batteries
  • Includes lanyard
Wireless Receiver & Motor Controller
  • Waterproof
  • Motor drive capability up to 25A
  • Overload protection
  • Reverse polarity protection
  • 12V DC nominal (9V min - 16V max operating range)
  • Offers pass-through capability for Autopilot motor and clutch control circuit
  • Brochure
    View (pdf)

    Type S/T OC15347 Manual
    1 file(s) 434 downloads
