Intellisteer Type R for Cable Steered Boats with Auxiliary Outboards
Intellisteer Type R for Cable Steered Boats with Auxiliary Outboards



Brand New with Factory's Warranty
List Price: US$789.00
Our Price: US$709.00
You save US$80.00!



Availability:: Usually ships the next business day
Product Code: C66501

Description Extended Information

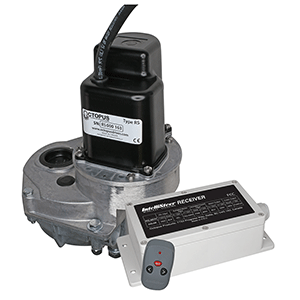

Type R for Cable Steered Boats with Auxiliary Outboards

Features:
  • Drive connects to kicker
  • Electronic clutch disengages for manual steering
  • Rotary drive system
  • Safety override technology
  • Current 1.25A typical, 5A peak
  • 6' steering cable for connecting drive unit included
  • Requires outboard link arm assembly
  • Wireless control module plus handheld pendant - steering in the palm of your hand
  • Steer, fish and cruise from anywhere on the boat
  • Easy DIY installation - no need for professional installer
  • 2 Year limited warranty - purchase with confidence
Specifications:
Wireless Controller & Receiver
  • Meets FCC standards
  • Additional Handheld and receiver can be paired in field
  • Pendant and receiver auto-off in 30 minutes if no usage
  • Over 1 Million control codes provide enhanced security
Handheld Pendant
  • Water proof
  • Supplied with 2xAAA batteries
  • Includes lanyard
Wireless Receiver & Motor Controller
  • Waterproof
  • Motor drive capability up to 25A
  • Overload protection
  • Reverse polarity protection
  • 12V DC nominal (9V min - 16V max operating range)
  • Brochure
    View (pdf)

    Type R OC15374 Manual
      1 file(s)  385 downloads
