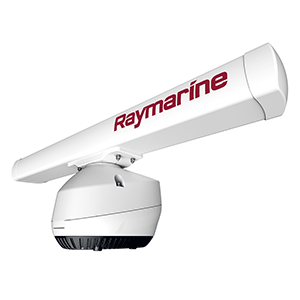

Raymarine 12kW Magnum with 4' Array & 15M RayNet Radar Cable T70412
Raymarine 12kW Magnum with 4' Array & 15M RayNet Radar Cable T70412



Brand New with Factory's Warranty
List Price: US$6,999.99
Our Price: US$6,999.99


Availability:: Usually ships the next business day
Product Code: C69301

Description Extended Information


Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays. Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.

Key Features

Magnum is available in 4kW or 12kW power output options, and with either a four-foot or six-foot antenna array option. It offers a maximum range up to 96nm for 12kW models – ideal for blue water vessels – and up to 72nm for 4kW models. The perfect companion to Raymarine’s award-winning Axiom® and Axiom Pro multifunction navigation displays (MFD) running LightHouse 3, Magnum is also backwards compatible with legacy models including:

  • LightHouse 2-based a, c, e, eS and gS-Series MFDs
  • C-Series Widescreen and E-Series Widescreen MFDs
  • E-Series Classic, G-Series Multifunction Displays
    Note: Not all Magnum features are available on all legacy MFDs.

ADDITIONAL FEATURES



Superior Bird Mode

Building upon Raymarine’s already exceptional bird identification technology, we have further advanced Magnum’s Bird Mode feature to target birds with greater clarity up to 10nm. Locating flocks of birds with Magnum helps anglers find schooling baitfish faster and with less fuel consumption.



Enhanced Radar Imaging

Magnum radar also features Raymarine beam sharpening technology, delivering better than 1-degree bearing resolution for more detailed target separation, map-like coastal detail, and superior long-range performance.



Best in Class Target Tracking

Magnum delivers better situational awareness with fully automatic MARPA target acquisition and tracking. Magnum also makes use of Raymarine’s Evolution 9-axis heading sensor technology to deliver real-time, accurate target plots.



True Trails

Magnum features True Trails target history. The True Trails features enables you to see a historical “wake” behind every moving contact. This additional information makes it even easier to interpret the motion of other vessels and make smart maneuvering decisions to pass safely.


Antenna Size ~4ft 4in (1.31m) ~6ft 4in (1.92m) ~4ft 4in (1.31m) ~6ft 4in (1.92m)
Max Range Scale 72 nautical miles 96 nautical miles
Scanner Weight
(Pedestal + Antenna)
57.3 lbs (26kg) 63.9 lbs (29kg) 57.3 lbs (26kg) 63.9 lbs (29kg)
Beam Width Horizontal
(Nominal)
1.85° 1.15° 1.85° 1.15°
Effective Horizontal Beam Width
(After Antenna Boost Beam Reduction)
Less than 1°
Beam Width Vertical -3dB 25°
Antenna Side Lobes (Inside 10°) < -21dB
Antenna Side Lobes (Outside 10°) < -30dB
Rotation Rate 24 rpm / 48 rpm
(Automatic high-speed mode improves tracking of fast moving contacts at ranges of 3 miles or less. MFD dependent.)
Receiver Bandwidth Matched digital filter for each pulse length
Pulse Length/PRF Settings 8
Number of Displayed Video Levels 256 (8-bit)
Voltage 10.8 to 32 volts DC (using supplied VCM100) for 12V, 24V DC Systems
Power Consumption (Typical) <70W (Transmit)
<30W (Standby)
<1.2W (Sleep)
<110W (Transmit)
<30W (Standby)
<1.2W (Sleep)
Maximum Automatic and Manual MARPA Targets (with Heading Sensor) 25
Real-Time Heading Refresh (with Heading Sensor) Yes
True Trails (with Heading Sensor) Yes
Multifunction Display Magnum Compatibility
Axiom / Axiom Pro (LH3.4 or later) Compatible with full feature set
eS Series / gS Series (LH3.3 or later) Compatible with limited feature set. No automatic MARPA
a/c/e/eS/gS Series (LH2 v19.03) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA
E-Wide (v2.65) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA
C-Wide (v2.35) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode
G-Series (v4.66) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA
E-Classic (v5.69) Compatible with limited feature set. No Real-Time Heading. No True Trails. No automatic MARPA. No Bird Mode
Operating Temperature Range 14°F to 131°F (-10°C to +55°C) D6
Non-Operating Temperature Range -20°C to +70°C C6
Waterproofing Standard IPX6
Scanner Cable Length 15m standard (5m, 10m and 25m optional)

IN THE BOX
PEDESTAL BOX
1. Pedestal 2. Mounting template
3. Denso paste 4. Lifting sling
5. Stud x4 6. Plain washer x4
7. Spring washer x4 8. Nut x8
9. Cable tightening tool 10. Radar-to-'RayNet & power' cable (15 m)
11. VCM100 mounting screw x2 12. VCM100 cable clamp mounting screw x3
13. VCM100 Voltage Converter Module 14. VCM100 cable clamp
ANTENNA BOX
1. Antenna (4ft or 6ft) 2. Threaded alignment guide x4
3. Plain washer x4 4. Spring washer x4

Installation Manual

View (pdf)
