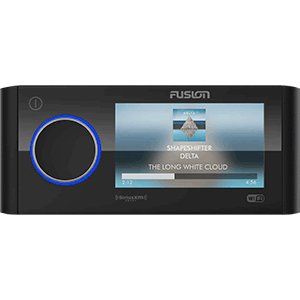

Fusion MS-RA770 Apollo Series Touchscreen AM/FM/Bluetooth Stereo
Fusion MS-RA770 Apollo Series Touchscreen AM/FM/Bluetooth Stereo



Brand New with Factory's Warranty
List Price: US$699.99
Our Price: US$699.99




Availability:: Usually ships the next business day
Product Code: C70939

Extended Warranty

3 Year Extended Warranty under $1000 [Add US$69.99]
No Extended Warranty

Description Extended Information


Apollo MS-RA770 Touchscreen AM/FM/BT/SiriusXM Stereo - 4 Zone with DSP

The world’s first touchscreen marine stereo with Apple AirPlay 2 and built-in Wi-Fi, the Apollo RA770 has redefined audio excellence with revolutionary technology and innovative design including Fusion’s Digital Signal Processing, enhanced PartyBus-Network capabilities, over-the-air software updates, a one-piece glass display and more source options than ever before, including advanced SiriusXM features.  From the kick drum to the eardrum, Apollo has made it inherently simple to customize your audio entertainment for superior sound quality in any area of your boat.

Built on the True-Marine design philosophy from Fusion®, the Apollo RA770 stereo has an IPX6- and IPX7-rated water-resistant front panel and has been tested to a high level of protection against salt fog, temperature, vibration, and UV.

Digital Signal Processing (DSP)  A technically superior listening experience made simple, Fusion's DSP produces superior sound quality in every environment.  Precisely calculated loudness curves optimized for the human ear ensure quality, full-range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, a thing of the past.  Using environmental information and acoustically designed Fusion speaker profiles, you can now achieve customized, optimized audio for any area of your boat, resulting in an entertainment system that is perfectly tuned for premium audio reproduction, and programmed to protect your system season after season.

PartyBus™ Network  Enjoy the freedom of musical choice with the Apollo Series and Fusion's PartyBus-Network. We have introduced a new intuitive user experience allowing for easy navigation of your entire boat's audio network, taking control of your audio and sources a seamless experience.  Key functionalities include - Stereo grouping, volume control, power options, and home zone technology.

NMEA 2000 Ready for connection and control from any supported Multi-Function Display - The MS-RA770 is a Fusion-Link Wired NMEA 2000 certified product and is compatible with a range of the world’s leading Multi-Function Displays for on-screen audio control. When pairing the MS-RA770 with a supported chartplotter or fishfinder, you bring your music to the big screen, allowing you to keep an eye on the charts or the fish while skipping tracks or adjusting the volume at the same time. In addition to MFD control, the MS-RA770 will connect to any Fusion NRX series remote control attached to the same powered NMEA 2000 network for localized control of the audio zones.

Fusion-Link™  Makes control of your stereo easier than ever.  Quickly find your favorite song, tune in to the sports or turn up the volume all from your partnered multifunction display (MFD), compatible smartphone, Garmin Handheld or Garmin watch.  With the app installed, you can enjoy source navigation and track selection from wherever you are on your boat.  The Apollo Series is intelligently simple and always up to date, thanks to the over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.

Multi-Zone Control  With four independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone.

Over-The-Air Software Updates  Over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.

Features:

  • Touchscreen technology
  • Marine digital media receiver with built-in Wi-Fi and Bluetooth
    • 4.3" capacitive touch glass LCD color display
    • Advanced Fusion DSP optimizes sound quality at all listening levels
    • Multi-zone control lets you tune four audio zones
    • Works with iPod/iPhone, plus Android and Windows phones
    • Class D amplifier technology conserves battery power
    • PartyBus audio distribution technology (requires Fusion MS-SRX400 zone stereos)

Technical Specifications:

  • 4 Zones
  • 280 Watts peak power
  • One ethernet port
  • NMEA 2000 compatible
  • Bluetooth wireless range - 30'
  • ANT wireless range - 10'
  • Class D Amplifier
  • Rear USB connection
  • DAB+ Ready
  • Language Interface -Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
  • Dimensions (H/W/D) - 3.23" x 7.56" x 4.7"
  • Cutout Dimensions (H/W/D) - 2.08" x 6.53" x 4.15"
  • Display 4.3" capacitive touch glass LCD color display
    Sources AM/FM/ Bluetooth / Wi-Fi audio streaming / PartyBus / digital optical input / USB audio / AUX x2 / UPnP / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM connect vehicle tuner)
    Digital Signal Processing (DSP) Yes
    Speaker Presets (easy to tune) Yes
    Fusion-Link Control (Wireless) Yes
    PartyBus Technology Yes (receive and broadcast - wired or wirelessly)
    Bluetooth Wireless Technology Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocols)
    SiriusXM-Ready Yes
    Wi-Fi Yes
    ANT Technology Yes
    NMEA 2000 (Control via MFD - Fusion-Link) Yes
    Works with NRX Remotes Yes
    Digital Optical Input (SPDIF) Yes
    Fits DIN Cut-Out Yes
    Water Resistance (IPX rating) IPx7 from the front panel when installed correctly.
    Internal Amplifier Yes
    Peak Power 280 W max
    Multi-Language User Interface English / French / German / Spanish / Dutch / Italian
    Auxiliary Inputs 2 x RCA Inputs (AUX1, AUX2)
    SPDIF Optical Audio-In One SPDIF port - supports TV audio output
    Ethernet One Ethernet port
    USB 2.0 Port One USB 2.0 port (for phone charging / media playback)
    SiriusXM One SiriusXM port (requires optional SiriusXM connect vehicle tuner, does not support traffic and weather)
    AM/FM radio One Motorola antenna connector port
    Speaker 4 x speaker connections (2 zone amplified)
    RCA Pre-Out (Left, Right and Subwoofer) 4 zones
    Operating Voltage +10.8 - 16V dc
    DAB+ Ready Fusion DAB+ module is required (sold separately). Only available where DAB or DAB+ broadcast is supported
    Line Out 4 (1 x L + R per zone. Requires external amplification)
    Subwoofer Out 4 (1 per zone. Requires external amplification)
    Software Updates Over-the-air software updates via the free Fusion-Link app or USB



  • Quick Guide View (pdf)
    Owners Manual View (pdf)
    Brochure View (pdf)



In the Box:

  • Stereo Head Unit
  • Cover
  • 6' NMEA 2000 Drop Cable
  • Mounting Hardware
  • Mounting Template
  • Power Wiring Harness
  • Aux/Line-out Harness
  • Documentation

∗SiriusXM Promotion - Purchase a SiriusXM Receiver (sold separately) and get a Rebate for 3 Free Months of SiriusXM Service with a Subscription

Note: The price is subject to change at any time without any notice. Not responsible for any typographical errors. Any products can be cancelled from sale at any time.
  • All products sold here come with Full Manufacturer's Warranty
  • Email us at
  • [email protected] for any quesitons
  • WarningWARNING: This product can expose you to chemicals including Di-n-hexyl Phthalate, DnHP, which is known to the State of California to cause reproductive harm, and Vinyl Chloride which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
