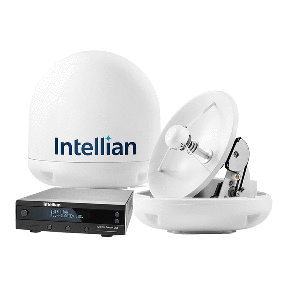

Intellian i3 US System 14.6" with North Americas LNB, B4-309SS
Intellian i3 US System 14.6" with North Americas LNB, B4-309SS



Brand New with Factory's Warranty
List Price: US$3,928.00
Our Price: US$3,142.67
You save US$785.33!


Availability:: Usually ships the next business day
Product Code: C71698

Description Extended Information


No HD TV available on DirecTV service

Superior Tracking Performance The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.
The i3 Highlights
Built in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
Auto satellite switching function from your remote control
Compatible with leading satellite TV service providers around the world
60° per second turn rate ensures signal tracking at high speeds and in rough seas
Travel further North or South with an extended elevation range of 10° to 80°
Built in GPS enables faster signal acquisition
Simplicity of design, no external compass or rate sensors required
Built-in HD module for Ku-band HD TV reception
i3 feature background 1
High Performance

You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with Intellian’s patented iQ² Technology. The slightly larger reflector and radome size over the i2 improve range and allow for a more ruggedized design, making the i3 ideal for vessels traveling at higher speeds or further into offshore waters.

Constant and Seamless Entertainment

With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian's super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

i3 feature background 1
Automatic Satellite Switching
DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.



i3 Features
Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis Stabilization provides high speed tracking

High Performance Antenna

  • 37 cm (15in) diameter parabolic antenna for receiving the Ku-band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

Intellian’s Patented Quick&Quiet? Technology (iQ²)

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

  • Intuitive controls with a digital information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module
Multiple Receiver Capability
  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home

Built-in GPS and NMEA 0183 Interface

  • The i3 includes a built-in GPS inside the Antenna Unit for faster signal acquisition
  • The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

Compact Size

  • 43cm (16.9 inch) antenna radome diameter
  • Antenna weighs less than 9 kg (19.8 pounds)

Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 1-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
PRODUCT MODELS
B4-309S
i3 US/Canada System
B4-I3DN
i3 DISH Network Package for NA (w. MIM)
B4-I3DNSB
i3 DISH Network Package for NA (w. MIM + DISH Network HD Receiver)
B4-309SDT
i3 DirectTV SD Ku-band only Package for NA (w. DirectTV Receiver)
B4-309L
i3 DLA Latin America System
B4-309U
i3 Sky Mexico/Europe System

PHYSICAL

Radome Height
44 cm (17.3 inch)
Radome Diameter
43 cm (16.9 inch)
Reflector Diameter
37 cm (14.6 inch)
Weight
9 kg (19.8 lbs)

ENVIRONMENTAL

Operating Temp. Range
-15°C ~ 55°C ( 5°F ~ 131°F )
Storage Temp. Range
-25°C ~ 70°C ( -13°F ~ 158°F )
Water Ingress
IPX6
Approvals
CE / FCC
Warranty
3 Years Parts and 1 Year Labor

PERFORMANCE

Reception Frequency
Ku-band : 10.7 ~ 12.75 GHz
Polarization
RHCP / LHCP, Vertical / Horizontal
Minimum EIRP
50 dBW
Azimuth Range
680°
Elevation Range
10° ~ 80°
Ship's Motion
Roll ±25°, Pitch ±15°
Roll & Pitch Response Rate
60° / sec
Turn Rate
60° / sec
RF Output
Dual Output

ANTENNA CONTROL UNIT

Dimensions (W × D × H)
17.8cm × 21.7cm × 5.4 cm (7.0 inch × 8.5 inch × 2.1 inch)
Weight
1.2 kg (2.6 lbs)
Display
2 line 20 character VFD module
Power Input
9.0~30.0V DC (Typ. 30W, max 50W)
Power Output
12V DC
GPS Interface
Built-In (NMEA 0183 GPS)
WiFi
Yes
Technical specifications
What's in the box?
All Satellite Systems include the following parts as standard
  • Antenna & Radome 37 cm (14.6 inch) Reflector & LNB
  • ACU (Antenna Control Unit)
  • PC Controller Program (Software CD included)
  • Installation & Operation Manual
  • Installation Template
  • Quick Installation Guide
Installation Kit
  • ACU Table Mounting Bracket × 2EA
  • 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
  • 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
  • 10 m (33 ft) × 1EA DC Power Cable
  • 1.8 m (6 ft) × 1EA PC Serial Cable
  • Connectors & Screws

i3 Datasheet Download Download i3 Manual Download Download i3 Images Zip File Download Download i3 Quick Installation Guide Download Download
