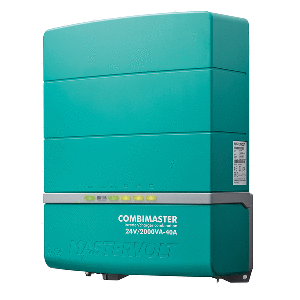

Mastervolt CombiMaster Battery Charger 24V - 2000W - 40 Amp (230V) 35022000
Mastervolt CombiMaster Battery Charger 24V - 2000W - 40 Amp (230V) 35022000

Up to $4000 Mail-in Rebate





Brand New with Factory's Warranty
List Price: US$1,728.00
Our Price: US$1,429.00
You save US$299.00!



Availability:: Usually ships the next business day
Product Code: C80139

Description Extended Information


CombiMaster 24/2000-40 (230 V)



Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!

With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.

The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.

Features

  • Most compact and lightweight Combi in its class.
  • Reliable, hum-free and longer operation from your batteries.
  • Starts even the heaviest and most sensitive loads.
  • Intelligent 3-step+ battery charger for faster and safer charging.
  • Automatic switching between mains and inverter mode.
  • Power Assist prevents blown mains fuses.
  • Generator compatible.
  • Integrated CZone, MasterBus and NMEA 2000 communication.
  • Quick installation with heavy duty connections.
  • E-mark certified.
  • Brochure
    View (pdf)

    Owners Manual
    View (pdf)



Remote Control and Monitoring options

  • MasterBus compatible via SmartRemote or EasyView 5 display.
  • CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display.
  • NMEA 2000 compatible via 3rd party multifunctional display.

Specifications


Specifications sine wave inverter
Nominal DC voltage 24 V (20.4–32 V)
Output voltage 230 V
Output frequency 50/60 Hz (configurable)
Output waveform true sine
Continuous power at 40 °C / 104 °F, cos phi 1 2000 VA / 1600 W
Peak power (30 sec) 3000 VA / 2400 W
Surge power (5 sec) 4000 VA / 3200 W
Max. efficiency 93 %
Battery no-load power consumption 20 W (on mode) / < 1 mA (off mode)
Energy saving mode consumption 10 W
Synchronise with mains yes

Specifications battery charger
Input voltage range 170-280 V
Max. input current 8 A (adjustable)
Max. charge current at 40 °C / 104 °F 40 A at 28,5 V (configurable)
Battery temperature sensor yes, included
Battery voltage sense automatic compensation

Specifications transfer system
AC input 25 A (switched)
AC output 33 A
AC input fuse yes
Transfer speed 10 ms
Transfer voltage range wide: 90–280 V / narrow: 170–280 V
Transfer frequency range 40-65 Hz

General specifications
Display/read-out LED display
Dimensions, hxwxd 371 x 284 x 155 mm
14.6 x 11.2 x 6.1 inch
Weight 6.9 kg
15.2 lb
Approvals CE, AZ/NZS

Technical specifications
Charge characteristic IUoUo, automatic / 3-step+ for flooded, Gel/AGM and MLI, configurable
Recommended battery capacity 120-320 Ah (based on gel batteries, may differ for other types)
Ground relay yes, configurable by means of mechanical jumper
Temperature range (ambient temp.) -25 °C to 60 °C, derating > 40 °C
-13 °F to 140 °F
Cooling vario fan
Protection degree IP23 (vertical mounting)
Safety class IEC protection class I
Humidity protection conformal coating, max. 95 % relative humidity, non condensing
Protections over-temperature, overload, short circuit, high/low battery voltage
Power Assist yes, supports AC input with power from the battery
Power Sharing yes, allows you to select AC Input fuse setting
MasterBus compatible yes
CZone / NMEA 2000 compatible yes
