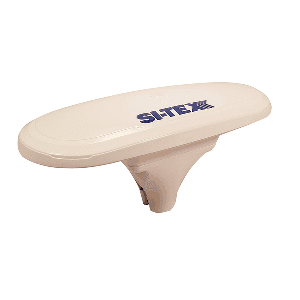

SI-TEX NMEA0183 GNSS SAT Compass with 49' Cable & Pole Mount, VECTOR200-0
SI-TEX NMEA0183 GNSS SAT Compass with 49' Cable & Pole Mount, VECTOR200-0



Brand New with Factory's Warranty
List Price: US$1,999.00
Our Price: US$1,599.00
You save US$400.00!



Availability:: Usually ships the next business day
Product Code: C83377

Description Extended Information


NMEA0183 GNSS SAT Compass with 49' Cable & Pole Mount

Experience superior navigation from the accurate heading and positioning performance available with the V200 SAT Compass.

The multi-GNSS V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30cm (11.8") RMS accuracy via the optional Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35cm (13.7") in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems.

Features:

  • Uses all known Satellite Systems GPS, GLONASS, Galileo, BeiDou, QZSS
  • 30cm (11.8") RMS world-wide positioning accuracy with Atlas correction subscription
  • 0.75 degree heading accuracy in an amazingly small form factor
  • Excellent in-band and out-of-band interference rejection
  • Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
  • Provides heading, positioning, heave, roll and pitch
GNSS Sensor Specifications
Receiver Type Vector GNSS L1 Receiver
Signals Received GPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas
Channels 424
GPS Sensitivity -142 dBm
SBAS Tracking 2-channel, parallel tracking
Update Rate 10 Hz standard, 20 Hz optional
Power
Input Voltage 6 to 36 VDC
Reverse Polarity Protection Yes
Dimensions
No Mount 34.8 L x 15.8 W x 7.5 H (cm)
LP Flat Mount 34.8 L x 15.8 W x 7.6 H (cm)
HP Flat Mount 34.8 L x 15.8 W x 10.7 H (cm)
Pole Mount 34.8 L x 15.8 W x 16.8 H (cm)



Documentation
Data Sheet SITVECTOR2000_DataSheet.pdf
Owners Manual SITVECTOR2000_OwnersManual.pdf
