Intellian v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight (Truck Freight)
Intellian v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight (Truck Freight)

Ship only via Ground Freight Rate. The shipping fee will be emailed after the order received





Brand New with Factory's Warranty
List Price: US$29,000.00
Our Price: US$23,200.00
You save US$5,800.00!


Availability:: Usually ships the next business day
Product Code: C85847

Description Extended Information

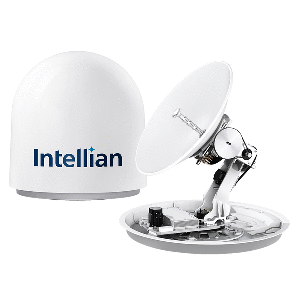

v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight

Reliable & Powerful 65cm Maritime System - Light. Affordable. Powerful.

Advanced Performance and Design

Intellianís advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 65 cm class systems. The v60E has a compact and streamlined mechanical design to produce a light weight and robust antenna, maintaining high levels of reliability and performance that are compulsory in a Maritime environment.

Controlled Costs with Light and Compact Form-factor

With its light and compact form-factor, the cost of installation and logistics is reduced. The weight of the antenna system is only 42kg, allowing installation without a crane and this saves the total cost of installation.

Simplified installation & enhanced AptusNX


Combining Tx, Rx and DC power into one coaxial cable solution with an external dome-on connection enables faster and reduced costs of installation for the v60E. It also eliminates the need to remove the radome during installation. Users can commission the system using AptusNX by simply plugging a laptop into the ACU, without any need to download extra software. The AptusNX uses an installation wizard with a step-by-step commissioning guide to easily complete setup, and with enhanced diagnostic capabilities, the AptusNX can send an alert to the network operator when preventative maintenance is required.

Features:

  • Single coaxial cable
  • Gyro-free Operation
  • Pain-free Installation
  • Global Satellite Library
  • AptusNX
  • Auto Beam Switching (ABS)
  • Simplified 6W Single BUC
  • Open Platform compatibility

Specification:

Radome Dimension

86x93.5 cm (33.85x36.8 inch)

Reflector Diameter

65cm (25.6inch)

Antenna Weight

42kg/ 92.6 lbs

TX Frequency

13.75~14.5GHz Ku-band

RX Frequency

10.7~12.75GHz Ku-band

TX Gain

37.9 dBi @ 14.25 GHz (excl. radome)

RX Gain

36.5 dBi @ 11.7 GHz (excl.radome)

G/T

15.5 dB/K (min.)


v60E

Datasheet
