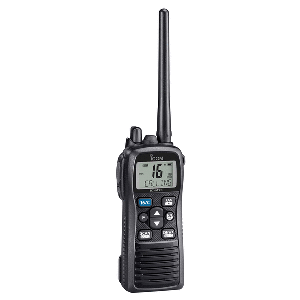

Icom M73 Handheld Submersible VHF - 6W
Icom M73 Handheld Submersible VHF - 6W



Brand New with Factory's Warranty
List Price: US$315.00
Our Price: US$229.95
You save US$85.05!



Availability:: Usually ships the next business day
Product Code: C86267

Description Extended Information


Simply Ergonomic: Slim, Stylish, Professional

The M73’s ergonomic design fits easily in the user’s hand and is a rugged, durable radio. The large screen and high intensity LCD offers bright, easy to read characters. Yacht customers benefit from the optional VOX headset and adapter option that allows someone handling dock lines to use both hands, while docking the boat, simultaneously communicating with the captain.

Output Power:

 6W

Battery Life:


 2000mAh Li-ion battery, up to 16 hours
Typical operation; Tx:Rx:Stand-by duty ratio = 5:5:90

Waterproof Rating:

 IPX8

Loud Audio

The M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.

M73 PLUS

The M73 PLUS includes these additional features:

  • Active noise cancelling to reduce background noise to hear conversations better.
  • Bass boost function provides a rich bass sound for both transmit and receive signals.
  • Last call voice recording automatically saves the last incoming call for one minute. You can also start recording manually.

Additional Features

  • AquaQuake™ water draining function
  • Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
  • 4 level battery indicator
  • Favorite channel and tag scan functions
  • Auto power save function

Specifications

General
Frequency Range
Tx
Rx
156.025–157.425MHz
156.050–163.275MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM)
Current drain (at 7.4V DC)
Tx (at 6W output)
Rx (Max. audio (Int SP/Ext SP)
1.5A typical
450mA/250mA

Operating temperature range

–20°C to +60°C; –4°F to +140°F

Antenna Impedance 50Ω (STUD)
Dimensions (W×H×D)
(Projections not included) 		52.5×125×30 mm
2.07×4.92×1.18 in
Weight (approx.) 320g; 11.3oz (With BP-245N, FA-S64V, MB-103)
Transmitter
Output power (Hi/Low)

6W/3W/1W

Max. frequency deviation ± 5.0 kHz
Frequency error ±10ppm
Audio harmonic distortion Less than 10% (at 60% dev.)
Spurious emissions –68dBc
Adjacent channel power 70dB
Audio harmonic distortion Less than 10% (at 60% dev.)
Residual modulation 40dB
Receiver
Sensitivity 0.22μV typ. (at 12dB SINAD)
Squelch sensitivity
0.35µV typ. (at threshold)
Adjacent Channel Selectivity 70dB typical
Spurious response 70dB typical
Intermodulation 70dB typical
Hum and noise ratio 40dB typical
Audio output power

Internal speaker
External speaker

700mW typ. (at 10% distortion, 8Ω load)
350mW typ. (at 10% distortion, 8Ω load)

Applicable U.S. Military Standards

Standard MIL 810 F
Method Proc
Low Pressure 500.5 I, II
High Temp. 501.5 I,II
Low Temp. 502.5 I, II
Temperature Shock 503.5 I - C
Solar Radiation 505.5 I
Rain Blowing/Drip 506.5 I, III
Humidity 507.5 II
Salt Fog 509.5 —
Dust Blowing 510.5 I
Immersion 512.5 I
Vibration 514.6 I
Shock 516.6 I, IV

Applicable IP Rating

Ingress Protection Standard
Water IPX8 (Waterproof protection)

Also meets equivalent MIL-STD-810-C, -D, -E and -F

Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Supplied Accessories

  • Cigarette lighter cable, CP-25H
  • Rapid charger, BC-210
  • Handheld strap
  • Belt clip, MB-103
  • AC adapter, BC-123SA
  • Battery pack, BP-245N
  • Antenna, FA-S59V
Documentation
Data Sheet ICOM7361USA_DataSheet.pdf
Owners Manual ICOM7361USA_OwnersManual.pdf
