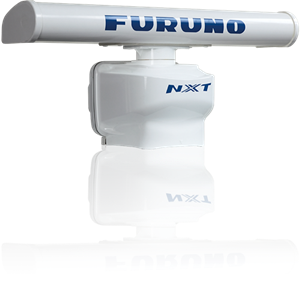

Furuno DRS12ANXT/3 100 Watt Solid-State Doppler Radar with 3.5' antenna & 15m cable
Furuno DRS12ANXT/3 100 Watt Solid-State Doppler Radar with 3.5' antenna & 15m cable



Brand New with Factory's Warranty
List Price: US$8,600.00
Our Price: US$7,370.00
You save US$1,230.00!



Availability:: Usually ships the next business day
Product Code: DRS12ANXT3

Description Extended Information

100 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, with 3.5' antenna

Antenna Size3.5 ft

Antenna TypeOpen Array

BandX-Band

Beam Width2.3 degrees

Power Usage12-24 VDC

Power Output100 W

The NXT step with doppler Radar technology

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

Target Analyzer function utilizing Doppler technology

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Fast Target Tracking

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

RezBoost Beam Sharpening

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

Specifications

DRS6A-NXT/DRS12A-NXT/DRS25A-NXT

DRS4D-NXT

ANTENNA

Type
Slotted waveguide array Radome (24")
Vertical beam width
22° 25°
Horizontal beam width/ Rezboost Effective Horizontal Beam
2.3°/ 1.15° (XN10A)
1.9°/ 0.95° (XN12A)
1.4°/ 0.7° (XN13A)
3.9° (-3dB) / 2.0°
Antenna rotation speed
24/36/48 rpm range coupled or 24 rpm fixed 24/36/48 rpm range coupled or 24 rpm fixed

RADAR FUNCTION

Tx frequency

3 channel, auto/manual selectable

Ch # P0N (MHz) Q0N (MHz)
1 9380 9400
2 9400 9420
3 9420 9440
Output power
200 W (DRS25A-NXT)
100 W (DRS12A-NXT)
25 W
25 W
Pulselength & PRR
Range Scales (NM)
0.0625-96 (DRS12A-NXT/DRS25A-NXT)
0.0625-72 (DRS6A-NXT)
0.0625-48
Pulse length (P0N)
0.04-1.2 0.08-1.2
Pulse length (Q0N)
5-48 5-18
PRR (Hz)
700-2000 1100
Tx frequency (MHz)
9380-9440 9380-9440
Minimum range
10 m 20 m
Range resolution
10 m 20 m
Range accuracy
1% of range in use or 10 m, whichever is the greater 1% of range in use or 10 m, whichever is the greater
Bearing accuracy
±1° ±1°

INTERFACE

Number of ports
LAN: 1 port, Ethernet, 100Base-TX, RJ45
Data sentences
IEC61162-1/2
Input
GGA, GLL, GNS, HDG, HDM, HDT, RMA, RMC, THS, VHW, VTG

POWER SUPPLY

12/24 VDC: 9.5/5.0 A max. 12-24 VDC: 2.5-1.3 A

ENVIRONMENT

Temperature
-25°C to +55°C, Waterproofing: IP56

EQUIPMENT

Standard
Scanner Unit (RSB-137-119), Radiator, Installation Materials, Spare Parts Radar Sensor (RSB-135-115), Installation Materials, Spare Parts
Option
LAN cable 2/5/10 m, Joint Box (TL-CAT-012) Radome Mount (OP03-208), (OP03-239)LAN cable 2/5/10 m, Joint Box (TL-CAT-012)

Antenna Unit

3.5 ft Open Array NXT Radar 22kg 48.5 lb
4 ft Open Array NXT Radar 25kg 55.1 lb
6 ft Open Array NXT Radar 27kg 59.5 lb

DRS4D-NXT

7.3 kg 16.1 lb

Interconnection Diagram

DRS4D-NXT Interconnection Diagram

MFD version compatibility
DRS25A-NXT/DRS12A-NXT: TZtouch 2 V 6.21 or Later. TZtouch V 6.01 or later
DRS6A-NXT: TZtouch 2 and TZtouch V 5.01 or later.
DRS4D-NXT: TZtouch 2 V3.01 or later. TZtouch V4.21 or later.
