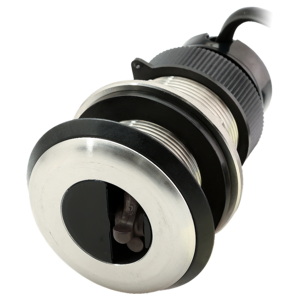

Airmar DST800 200kHz, 100W, SST Retractable, No Valve, DST
Airmar DST800 200kHz, 100W, SST Retractable, No Valve, DST



Brand New with Factory's Warranty
List Price: US$430.00
Our Price: US$349.00
You save US$81.00!



Availability:: Usually ships the next business day
Product Code: DST800SS-A

Plotter Model

Type in Plotter/Sounder Model Name*:

Description


The DST800 is an analog Triducer® Multisensor that offers depth, speed, and Temperature functions in one compact thru-hull fitting. The low-profile, retractable sensor computes accurate depth, speed, and Temperature data. All that is needed to receive depth, speed, and Temperature data is a single cable into a compatible network or display.

The wide, port-starboard, fan-shaped beam is able to find the bottom even when installed on a high-deadrise hull or a heeling sailboat.

NOTE: The DST800L is a longer version in a B122 housing.

  • Depth, speed, and temperature in one compact housing
  • 235 kHz frequency prevents mutual interference with other echo sounders on the vessel
  • Depth performance from 500 mm to 185 m (1.6 to 600')
  • Wide, port-starboard, fan-shaped beam is able to find bottom even when installed on high-deadrise hull or heeling sailboat
  • Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
  • Analog output sensor operating at 200 or 235 kHz
  • Available in NMEA 0183 or NMEA 2000 standard
  • Choose plastic, bronze, or stainless steel housing with water valve
  • NMEA 2000 certified or NMEA 0183 cable
  • Available in a paddlewheel-free model, utilizing ultrasonic speed calculation-- see UDST800
Brand: Airmar Technology
Acoustic Window: Urethane
Cable-Length: 10 m (33')
Comm Method: Analog
Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
Connector: Bare Wire
Conventional Beam: 13°
Country of Origin: USA
Data Rate: 1X per second
Display Connector: 0
Frequency Band: 200 kHz
Hole Size: 51 mm (2"), Stainless steel housing in metal hull—57 mm (2-1/4")
Housing Material: Stainless Steel
Hull Material: All hull materials
Max Deadrise: Up to 22°
Max Deadrise Angle: 22°
Max Depth: Up to 100 m (330')
Mounting Style: Tilted Element Thru-Hull
Power Rating: 250 W
Pulses: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Retractable housing: Yes
Single or Dual Frequency: Conventional Single Frequency
Speed Range: Up to 45 knots
Temperature Accuracy: ±0.5°C (±1.8°F)
Tilted Element: No
Transducer Functions: Depth, Speed, Temperature
Usable Shaft Length: 55 mm (2.15")
Water Temperature: -10° to 40°C (14° to 104°F)
Weight: 1.9 kg (4.2 lb.)
BrochureDST800
DimensionsD-92-257-01
InstallationD-17-355-01
InstallationD-17-435-01
User GuideOwners-Guide-17-435-01-es
User GuideOwners-Guide-17-435-01-fr
User GuideOwners-Guide-17-435-01-it
WiringD-91-594
