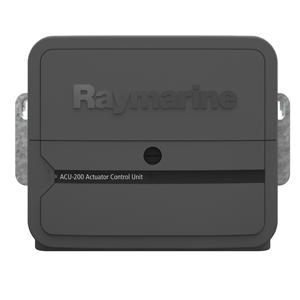

Raymarine ACU-200 Actuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives E70099
Raymarine ACU-200 Actuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives E70099



Brand New with Factory's Warranty
List Price: US$949.99
Our Price: US$799.00
You save US$150.99!



Availability:: Usually ships the next business day
Product Code: E70099

Description Extended Information


Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk ng bus. Choose the ACU that fits your steering system type:

Supported Drives

ACU-200

Type 1 Raymarine hydraulic, linear and rotary mechanical drives

ACU-300

For solenoid controlled steering systems and Raymarine constant running hydraulic pumps

ACU-400

Type 2 and 3 Raymarine hydraulic, linear, and rotary mechanical drives

Raymarine Evolution ACU Specifications

Model

ACU-100

ACU-200

ACU-300

ACU-400

E70098

E70099

E70139

E70100


Drive Current Output
Maximum continuous

7 A at supply voltage

Maximum continuous 15 A at supply voltage
Maximum continuous 5 A

at supply voltage

Maximum continuous

30 A at supply voltage

Drive Clutch Output
No clutch connection
Up to 2.0 A continuous, selectable between 12 /24 V
No clutch connection
  • Up to 4 A continuous at 12 V on 12 V systems,
  • Up to 4 A continuous at 24 V on 24 V systems,
  • Up to 4 A continuous at 12 V on 24 V systems
Connections
  • Rudder reference sensor
  • Power
  • Drive motor
  • Ground
  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground
  • Rudder reference sensor
  • Sleep switch
  • Power
  • Solenoid drive out / return
  • Ground
  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground
  • Digital Input / Output (DIO)
Nominal supply voltage

12 V

12 V or 24 V

Operating voltage range

10.8 V to 15.6 V dc

10.8 V to 31.2 V dc

Power consumption (standby) - main power supply

300 mA (12V)

300 mA (12/24 V)

Power consumption (standby) - SeaTalk ng power supply

No power supply to SeaTalkng

20 mA (12V)

SeaTalkng LEN

(Load Equivalency Number)

1

SeaTalkng Power out

No power supply to SeaTalkng

3 A at 12 V (fuse protected at 3 A)

Data connections

SeaTalkng

Installation environment

Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)

Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)

Relative humidity: max 93%

Waterproof rating

Connector panel: IPX2

Drive electronics: IPX6

Drip resistant

Dimensions

(W x H x D)

180 mm x 140 mm x

52 mm

(7.1 in x 5.5 in x 2.0 in)

285 mm x 211.5 mm x 64.5 mm

(11.2 in x 8.3 in x 2.5 in)

Weight

0.6 kg (1.32 lbs)

2.2kg (4.84 lbs)

Conformance

Europe: 2004/108/EC

Australia and New Zealand: C-Tick, Compliance Level 2

Procduct Documenet

Product Document:
