Raymarine Ray91 Modular Dual-Station VHF Black Box Radio System with AIS E70493

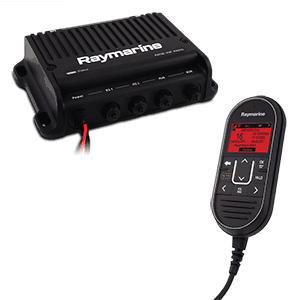

Raymarine Ray91 Modular Dual-Station VHF Black Box Radio System with AIS E70493



Brand New with Factory's Warranty
List Price: US$1,199.99
Our Price: US$999.00
You save US$200.99!



Availability:: Usually ships the next business day
Product Code: E70493

Description Extended Information


The Ray91 modular VHF radio brings dual-station communications and traffic management to a whole new level of power, performance, and flexibility. The Ray91 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.

Key Features

  • Black box, dual-station capable VHF radio
  • Built-in Automatic Identification System (AIS) Class B Receiver
  • NEW - Wireless handset and active speaker available
  • Wired handset and passive speaker included
  • Expandable to 2 RayMic handsets
  • Built-in loudhailer and fog signal generator
  • Optional external GPS receiver and Class D Digital Selective Calling
  • Simple NMEA2000 and NMEA0183 Networking
  • Installation Guide View (pdf)
The Ray91 is also equipped with an integrated Automatic Identification System (AIS) receiver. Us the Ray91 to receive navigation and safety broadcasts from nearby AIS-equipped vessels and share them over NMEA2000 or NMEA0183 with compatible MFDs. AIS equipped vessels can easily be identified along with their vessel name, course, speed, CPA, and other voyage information.

Communications Powerhouse

Ray91 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray91’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray91 supports the ATIS system on navigable inland waterways.

Loudhailer

Ray91’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized

Ray91’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions

The Ray91 system includes 1 wired handset and a passive speaker kit. Expand your system with an additional wired station to keep you in communication from the tuna tower, flying bridge, helm, salon or even in staterooms!

No matter how small or how large your vessel is, the Ray91 from Raymarine has all the power and performance you need for essential communications, safety and situational awareness on the water.

Model Wired Unit Wireless Hub Wireless Handset Charging Holster
Size (HxWxD) Main Unit Height = 63mm (2.48 in)
Width - 235mm (9.25 in) max
Depth 160mm (6.30 in) max excl rear cables
Weight Main Unit 2.6 Kg (5.7 lbs)
Water Integrity Complies with IPX6 & IPX7
Complies with EN60945
Operating Temperature Range -25°C to 55°C
Storage Temperature Range -25°C to 70°C
Humidity up to 95%
Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101)
Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Rechargable Lithium Ion 2000mAh battery 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range 9V DC to 16V DC 9V DC to 16V DC
Current Consumption Less than 6A at High Power (13.6V)
Standby: 600 mA
Receive: 2 Amps
1 Amp Nominal Less than 6A at High Power (13.6V)
Standby: 600 mA
Receive: 2 Amps
Fuse requirements Inline fuse = 1.25A | Thermal Breaker = 1.25A
Charge Type Wireless Inductive Charge
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz
155.500 to 161.425 MHz Private channels
Frequency Stability + / - 1.5 ppm
Channel Spacing 12.5 kHz
Power Output High Power = 25 Watt
Low Power = 1 Watt
Spurious emmission Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation +/- 5kHz
Antenna port impedance 50 ohms typical
Receiver Type Double Conversion Super Heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz
155.500 to 161.425 MHz Private channels
Wireless Frequency 2.4GHz 2.4GHz
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity Less than -2 dBµ EMF
Hum & Noise Better than -40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical
Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB
External Passive Speaker Power 5W (4Ω) / 2.5W (8Ω) (Passive) 5W (8Ω) (Acitve)
Hailer Speaker Power Output 24W (4Ω) / 12W (8Ω)
Number of channels 72
Cold Start 29s
Receiver IC Sensitivity -167 dBm (Tracking) / -148 dBM (Acquisition)
GNSS Compatibility GPS
GLONASS
*BeiDou
SBAS Compatibility WAAS
EGNOS
MSAS
Special Features Active jamming and interference reduction
Operating frequencies GPS L1 C/A
GLONASS L10F
Beidou B1
Signal Acquisition Automatic
Almanac Update Automatic
Geodetic Datum WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate 20 Hz (20 times per second concurrent GNSS)
Positional Accuracy Without SBAS: <2.5 metres 95% of the time
With SBAS: <2 metres 95% of the time
Class Type AIS Receive Only
IN THE BOX
1 Ray90 / Ray91 VHF DSC Radio (including fitted power and data cable)
2 Raymic handset cradle
3 Raymic handset
4 Raymic handset adaptor cable (12 pin female to 12 pin male with RCA Audio)
5 Passive speaker
6 Passive speaker mounting gasket
7 Passive speaker mounting screws x 4
8 Documentation
9 VHF radio mounting screws x 4
10 Handset cradle mounting screws x 4
11 DeviceNet to SeaTalkng® adaptor
