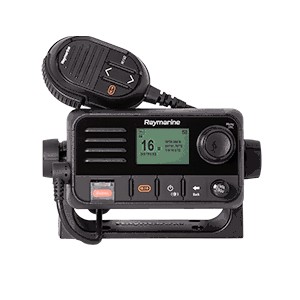

Raymarine Ray53 Compact VHF Radio with GPS
Raymarine Ray53 Compact VHF Radio with GPS



Brand New with Factory's Warranty
List Price: US$599.99
Our Price: US$499.00
You save US$100.99!



Availability:: Usually ships the next business day
Product Code: E70524

Description Extended Information


Raymarine’s Ray53 radio is small in size but big on features and performance. Ray53 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. Simply program your boat’s MMSI number into the Ray53 and immediately benefit from the enhanced calling and safety features of DSC.

Key Features

  • Compact marine VHF with Digital Selective Calling
  • Built-in GPS/GNSS receiver with a connection point for an optional external antenna
  • NMEA2000 and NMEA0183 networking for integration with onboard systems
  • Audio output connection for optional passive remote speaker (A80542)
  • Surface and trunnion mount kits included
  • Styled to compliment the Axiom family of multifunction displays
  • Owners Manual
    View (pdf)
Operating Temperature -20ºC (-4ºF) to +60ºC (140ºF)
Storage Temperature -25ºC (-13ºF) to +70ºC (158ºF)
Relative Humidity 95%
Water Proofing IPx6 & IPx7
Connections 1x NMEA 0183 | 1x SeaTalkng ® / NMEA 2000 | 1x Audio (RCA) | 1x GNSS (GPS) antenna (TNC)
Nominal Supply Voltage 12 V dc (Reverse polarity and over voltage protection)
Operating Voltage Range 9 Vdc to 16 Vdc
Current Consumption Less than 6 A at high power (13.6 V)
Standby: 600 mA
Receive: 2 A
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Frequency Stability +/- 1.5 ppm
Channel Spacing 12.5 kHz
Power Output Low power setting — 1 W | High power setting — 25 W
Spurious missions Better than –36 dBm at 25 W (Less than 0.25 μW)
Maximum Deviation +/- 5 kHz
Antenna Impedance 50 Ohms (typical)
Receiver Type Double conversion super heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Sensitivity Better than 1 microvolt EMF @20dB SINAD
Squelch Sensitivity Less than —2 dBμ EMF
Hum and Noise Better than –40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance — 119dBm (0.25uV) @ 12dB SINAD (typical)
Local — 110dBm (0.7uV) @12dB SINAD (typical)
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB
Base Station Speaker Power Output 2.5W (8Ω)
Fistmic Speaker Power 1W (16Ω)
External Speaker Power 5W (8Ω)
Channels 72
Cold Start <2 minutes
Receiver IC Sensitivity –167 dBm (Tracking) / –148 dBm (Acquisition)
GNSS Compatibility GPS | GLONASS | *Beidou
SBAS Compatibility WAAS | EGNOS | MSAS
Special Features Active Jamming and Interference Reduction
Operating Frequency GPS L1 C/A | GLONASS L10F | Beidou B1
Signal Acquisition Automatic
Almanac Update Automatic
Geodetic Datum WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate 10 Hz (10 times per second Concurrent GNSS)
Antenna Internal — Ceramic chip mounted near top of unit
External — Passive antenna connection via TNC connector
Position Accuracy Without SBAS: <= 15 metres 95% of the time | With SBAS: <= 5 metres 95% of the time
IN THE BOX
1 Ray53 VHF DSC Radio
2 Sun cover
3 Panel mount gasket
4 Mounting bracket (Trunnion)
5 Mounting bracket knobs
6 Fistmic hook plate
7 4 x M4x25 screws (For Bracket (Trunnion) mounting)
8 Documentation
9 4 x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
10 Protective antenna boot
11 2 x M4x12 screws (For Fistmic hook plate mounting)
12 SeaTalkng ® blanking plug
13 SeaTalkng ® 400 mm (15.7 in.) spur cable

Owners Manual
View (pdf)
