Icom M410BB Black Box VHF With HM195G

icom M411BB Black Box VHF with HM195GB CommandMic

Icom’s IC-M410BB is a flexible black box mounted on a fixed mount that provides VHF communications for vessels with limited helm space. The supplied black CommandMic™ controls the radio for essential communications on the water.

Clean Installation for Limited Helm Space

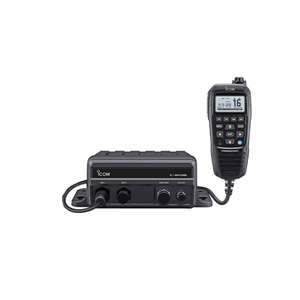

The IC-M410BB consists of a CommandMic™ and a black box RF unit. Use the CommandMic™ for all operations, including DSC. Install the RF unit out-of-sight, placing it up to 60 ft (18.3 m)* away from the CommandMic™.

*Two OPC-1541 cables are required for the 60 ft installation

CommandMic™ Stations

Add CommandMic™ to extend communication points for boats requiring a second communications station. This is ideal for boats that need communication between the cockpit and other locations on the boat. Access the intercom functions for one-to-all or one-to-one communications on the boat.

Class D DSC Functionality

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the IC-M410BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel.

NMEA200® and NMEA 0183-HS®

The NMEA 2000® network provides plug-and-play data communication to interconnect other marine equipment, such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

Loud One-Way RX Hailer

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker, allowing you to listen to it on the deck or tower. You can also hear foghorn patterns from the hailer speaker.

Active Noise Cancelling

The Active Noise Cancellation function digitally removes background noise from transmitted and received audio to provide clear communication in noisy maritime environments.

Features:

AquaQuake™ function
Anchor watch function

Specifications

General
Usable channels	USA, INT, CAN, WX channels
Power supply requirement	13.8 V DC nominal (11.7 ~ 15.9 V DC) (Negative ground)
Current drain (at 13.8 V DC)	TX Max. power - 5.5 A Max. RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)
Operating temperature range	—20°C ~ 60°C, —4?F ~ 140?F
Antenna impedance	80 ohm nominal
Weight (approx.)	RF unit - 890 g; 2 lb CommandMic™ - 400 g; 14.1 oz
Transmitter
Output power (at 13.8V DC)	25 W, 1 W (High, Low)
Max. frequency deviation	±5 kHz
Frequency tolerance	±0.5 kHz
Spurious emissions	Less than —70 dBc (High power), Less than —56 dBc (Low power)
Residual modulation	More than 40 dB
Adjacent channel power	More than 70 dB
Receiver
Sensitivity FM (at 12dB SINAD)	0.22 ?V typical
Sensitivity DSC (at 1% BER)	—7 dB? emf typical
Adjacent channel selectivity FM	More than 70 dB
Adjacent channel selectivity DSC (1% BER)	More than 73 dBµ emf
Spurious response FM	More than 70 dB
Spurious response DSC (1% BER)	More than 73 dB? emf
Intermodulation FM	More than 75 dB
Intermodulation DSC (1% BER)	More than 68 dBµ emf
Hum and noise	More than 40 dB
