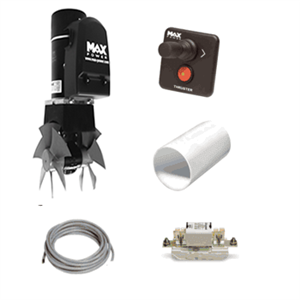

Max Power CT100 Electric 7.1kw/9.5HP 185mm Tunnel Thruster Package with 25m Cable 12V
Max Power CT100 Electric 7.1kw/9.5HP 185mm Tunnel Thruster Package with 25m Cable 12V

Ship only via Ground Freight Rate. No Flat Rate

Brand New with Factory's Warranty
List Price: US$3,883.95
Our Price: US$2,833.95
You save US$1,050.00!




Availability:: Usually ships the next business day
Product Code: MAXPACK5


Bow Tunnel Length*: 		30 In Long for CT60/80/100/125
40 In Long for CT60/80/100/125 [Add US$40.00]
60 In Long for CT60/80/100/125 [Add US$70.00]

Control Type*: 		Joystick
Touch Panel
Description Extended Information


Ship only via Truck Ground Freight. No Flat Promo Rate or Free shipping

Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor boats and deep footed sailing yachts from 17’ to 85’ feet.

Designed for performance & durability, Max Power electric tunnel thrusters offer many unique features:

  • Corrosion free composite drive legs eliminate the need for periodic anode changes and offer high manufacturing tolerances
  • Drive legs are pre-filled with oil and sealed for life for zero maintenance
  • Case hardened spiro-conical gears guarantee a silent, smooth and durable drive leg
  • Line shields protect oil seals from fishing lines & fouling, ensuring maintenance free operation
  • High efficiency, purpose built DC motors ensure outstanding performance and long runtime ratings
  • Solid copper contact bars guarantee safe, high power connections
  • Purpose built high specification DC contactors are both safe and durable
  • Electronic control boxes offering unique and unrivaled safety features to protect against accidental misuse

The 12V, twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs).

The CT100, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

Code Voltage Thrust Propellers Power Weight A B C D E
42534 12V 96(kg) / 212(lbs) 2 7.1(kw) / 9.5(hp) 24(kg) 250(mm) 200(mm) 365(mm) 185(mm) 6 - 7(mm)
