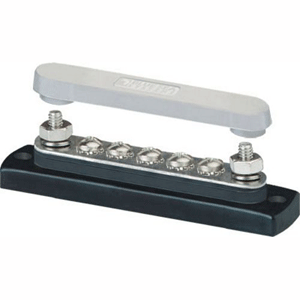

MiniBus 100 Ampere Common BusBar 5 x 8-32 Screw Terminal with Cover

PN: 2314

• Great for limited space applications in electronics cabinets and under dashboards
• Snap on insulating cover attaches to studs and allows unobstructed wire access
• Raised bus provides easy access to multiple wires on a single screw
• Pressed on busbar eliminates the need for securing nut
• Stainless steel studs allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and corrosion resistance
  =
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
• Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts
• Stainless steel Phillips screws for easier installation and resistance to stripping
• UL 94-VO rated base material resists high heat

Continuous Amperage	130 Amperes AC/DC
Maximum Voltage Rating	300 Volts AC/48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Reinforced Polycarbonate
Cover Material	Clear Polycarbonate
Weight	0.17Lb
