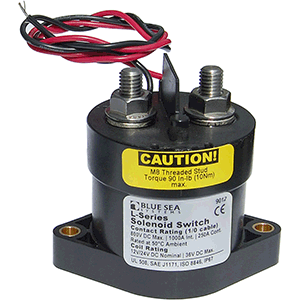

Blue Sea Solenoid Switch, L-Series 9012
Blue Sea Solenoid Switch, L-Series 9012



Brand New with Factory's Warranty
List Price: US$261.00
Our Price: US$189.00
You save US$72.00!


Availability:: Usually ships the next business day
Product Code: S9012

Description Extended Information


?   Contacts hermetically sealed
?   Vaporproof/Ignition protected
?   Pulse circuit requires very low current draw when contact is closed
?   UL Recognized - UL 508 Industrial Control Equipment
?   Meets SAE J1171 - External ignition protection requirements
?   Functions as a remote battery switch
?   Activated by an ON-OFF switch mounted anywhere
?   Used as a manual battery paralleling switch

Specifications
Coil Circuit
 Input Voltage 9-36 Volts DC Maximum
 Power Consumption
          -inrush max, 130ms 3.80 Amperes @ 12-36 Volts DC
  -holding 0.13 Amperes @ 12 Volts DC
  0.07 Amperes @ 24 Volts DC
Main Power contacts
Voltage Rating 60 Volts DC
Stud Terminal Size M8 (accepts 5/16" terminals)
Contact Form SPST-NO
Inrush Rating: 0.25 sec (10 repeats)* 2,000 Amperes DC
Cranking Rating: 9.75 sec (10 repeats)* 500 Amperes DC
Intermittent Rating: 9.75 sec (10 repeats)* 275 Amperes DC
Continuous Rating: (UL 1107) 250 Amperes DC
Mechanical Life 1 Million Cycles
ce_logo.gifMarked
