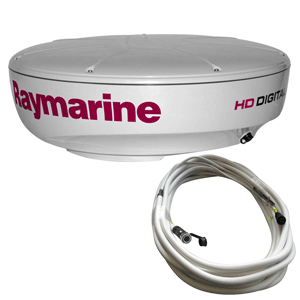

Raymarine RD418HD 18in HD Digital Radar Dome with 10M Cable T70168
Raymarine RD418HD 18in HD Digital Radar Dome with 10M Cable T70168



Brand New with Factory's Warranty
List Price: US$2,099.99
Our Price: US$2,099.99


Availability:: Usually ships the next business day
Product Code: T70168

Description Extended Information


Exceptional performance, even in the most challenging conditions

Digital and HD Color Radome Radars offer the latest in power and technology.

SeaTalkHS connectivity and Raymarine's Auto GST technology provides enhanced small target returns and eliminates clutter caused by rain and sea conditions automatically through your Multifunction Display.

Each Raymarine Radar System consists of a Raymarine multifunction display (excluding A Series displays), and your choice of Raymarine radome or open array antenna.


Raymarine Digital Radome Antennas

Features:

    • 48 NM range
    • Plug and Play compatibility with: Raymarine a series, Raymarine eS series, C Series Widescreen , E Series Widescreen and G Series multifunction navigation displays
    • Improved radiation pattern and bearing resolution using Propagation Enhancing Geometry
    • Same mounting pattern as previous generation radomes
    • Utilises small SeaTalkHS interconnect cable for ease of installation

Raymarine HD Color Radome Scanners

Features:

  • 48 NM range
  • Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
  • 256 color multi-level target display with selectable color palettes
  • Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish
  • Dual-range mode allow you to monitor both long and short ranges simultaneously with a single scanner and display

Raymarine Radome Radar Antennas Comparison

Model

Raymarine

RD418D

Raymarine

RD424D

Raymarine

RD418HD

Raymarine

RD424HD

Signal Processing Digital HD Color
Compatible With New e Series Multifunction Displays

New a, c Series Multifunction Displays

Raymarine C Series Widescreen Multifunction Displays

Raymarine E Series Widescreen Multifunction Displays

Raymarine G Series Multifunction Navigation

Networking SeaTalkHS
Peak Power Output (kW) 4.0 kW (nominal)
Antenna Type

Patch Array
Beam Width (Nominal)
4.9 horizontal, 25 vertical
3.9 horizontal, 25 vertical
4.9 horizontal, 25 vertical
3.9 horizontal, 25 vertical
Polarization
Horizontal
Rotation Rate Range less than 3 miles 48 RPM (radar switches to 48 RPM automatically, unless 24 RPM is selected)

Range greater than 3 miles - 24 RPM (nominal)
CE Approval Conforms to 1999/5/EC
FCC Approval Conforms to 47CFR Part 2 and Part 80
Dimensions

20.5 x 9.7 in

(521 x 247 mm)

25.7 x 9.7 in

(652 x 247 mm)

20.5 x 9.7 in

(521 x 247 mm)

25.7 x 9.7 in

(652 x 247 mm)

Weight 21 lbs

(9.5 kg)

22 lbs

(10 kg)

21 lbs

(9.5 kg)

22 lbs

(10 kg)

Input Voltage 12 - 24 V DC
Power Consumption 40 W (20 W Standby) 60 W (25 W Standby)
Temperature Range 14F to 131F

(-10C to +55C)

Humidity Limit up to 95% at 95F (35C)
Maximum Operating Wind Speed 100 kts
Maximum Range Scale 48 nm
IF Frequency
60 MHz (nominal)
70 MHz (nominal)
Receiver Characteristic Logarithmic Linear
Receiver Noise Figure Less than 5 dB (including Low Noise Converter/Limiter & IF Receiver)
Reciever Bandwidth 12/3/0.7/0.5 MHz Matched digital filter for each pulse length
Transmitting Frequency 9405 +/ 25 MHz
Transmitter Solid-state modulator driving Magnetron
Standby Mode Magnetron heater and control left on, all other services off
Duplexer Circulator


Manuals:
Installation Manual

View (pdf)
Note: The price is subject to change at any time without any notice. Not responsible for any typographical errors. Any products can be cancelled from sale at any time.
  • All products sold here come with Full Manufacturer's Warranty
  • Email us at
  • ask@marinedeal.com for any quesitons
  • WarningWARNING: This product can expose you to chemicals including Di-n-hexyl Phthalate, DnHP, which is known to the State of California to cause reproductive harm, and Vinyl Chloride which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
