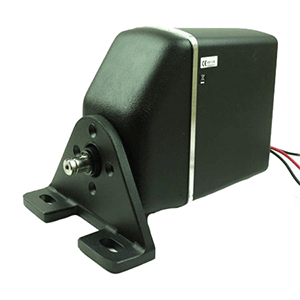

Raymarine Type 2 Rotary Drive 24V M81137
Raymarine Type 2 Rotary Drive 24V M81137



Brand New with Factory's Warranty
List Price: US$2,349.99
Our Price: US$1,999.00
You save US$350.99!



Availability:: Usually ships the next business day
Product Code: WM81137

Description Extended Information


Raymarine Mechanical Rotary Drives



The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.

Optional drive sprockets and modification to the steering chain may be required.



Mechanical Rotary Drives







Drive Type

Type 1

12V: M81135

Type 2

12V: M81136

24V: M81137

Maximum boat displacement

11,000 kg

20,000 kg

Peak output torque

20 nm

34 nm

Maximum shaft speed

33 rpm

33 rpm

Recommended hard-over times

(no load)

10 seconds

10 seconds

Power consumption

24-48 W

60-84 W

Corepack used

 ACU-200

ACU-400

Notes:
  • Optional drive sprockets and modification to the steering chain may be required.
  • An authorised Raymarine dealer is best suited for installing a linear drive system

Manual
