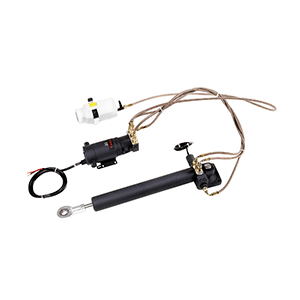

Raymarine Type 3 Hydraulic Linear Drive 24V M81203

Home > Autopilot > Raymarine Autopilot > Raymarine Autopilot Drive Unit >

Up to $3000 Mail-in Rebate

Brand New with Factory's Warranty

List Price: US$3,519.99

Our Price: US$3,179.00

You save US$340.99!

Availability:: Usually ships the next business day
Product Code: WM81203

Description

Extended Information

Raymarine Hydraulic Linear Drives

Designed for larger mechanically steered vessels over 20,000kg, our hydraulic linear drives are self-contained hydraulic steering systems consisting of a reversing pump, reservoir and hydraulic ram.

A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required. Must be able to back drive steering system for the rudder.

	Hydraulic Linear Drives

Drive Type	Type 2 12V: E12207 24V: E12208	Type 3 12V: M81202 24V: M81203
Maximum boat displacement	22,000 kg	35,000 kg
Peak thrust	585 kg	1,200 kg
Maximum stroke	254 mm	300 mm
Hard-over to hard-over times	10 seconds	10 seconds
Maximum rudder torque	1,270 Nm	3,200 Nm
Corepack used	ACU-400	ACU-400

Notes:

A hydraulic linear drive unit connects to the rudder stock via an independent tiller arm. Accessory fittings from your steering system manufacturer may be required.
An authorised Raymarine dealer is best suited for installing a linear drive system.
Must be able to back drive steering system for the rudder

Hydraulic Linear Drive (E12207, E12208, M81202, M81203) Installation instructions 81177-5-EN.pdf
