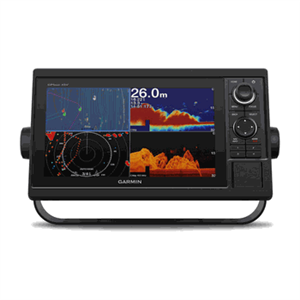

Garmin GPSMAP 1022xsv Keyed Networking GPS Fishfinder with Worldwide Basemap - No Transducer 010-01740-02
Garmin GPSMAP 1022xsv Keyed Networking GPS Fishfinder with Worldwide Basemap - No Transducer 010-01740-02



Brand New with Factory's Warranty
List Price: US$1,499.99
Our Price: US$1,499.99

Free Ground shipping to Lower 48 States





Availability:: Usually ships the next business day
Product Code: C63439

Extended Warranty

2 Year Extended Warranty under $1500 [Add US$69.99]
4 Year Extended Warranty under $1500 [Add US$129.99]
No Extended Warranty

Description Extended Information


10-inch Chartplotter/Sonar Combo Is All-in-1 Solution

  • 10-inch color display with keypad interface and multifunction control knob
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Built-in Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately)
  • Fully network capable for Garmin Marine Network and NMEA 2000® plus NMEA 0183 support

Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1022xsv keyed combo. comes with or without a transducer for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü. It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix™ sonar among multiple units. Includes NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, FUSION-Link, VHF, AIS and other sensors.

Built-in Wi-Fi® Connectivity

Enjoy built-in Wi-Fi connectivity for BlueChart Mobile 2.0 and Garmin Helm apps. Garmin Helm allows you to view and control your compatible chartplotter from a compatible smartphone or tablet while providing enhanced situational awareness for the mariner. With BlueChart Mobile, a free app downloaded from the App Store™, you can get reliable weather information while you plan marine routes on your iPad® or iPhone® then wirelessly transfer them to your boat’s compatible networked Garmin chartplotter. You can even stream and control a VIRB action camera from the chartplotter.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to quatix® marine watch, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls.

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS receiver refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Upgrade to Our Best Maps on the Water

Two SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD, LakeVü HD Ultra, BlueChart® g3 HD or BlueChart® g3 Vision® HD, which adds Garmin patented Auto Guidance¹ and other great features.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations.

iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Physical & Performance

Physical dimensions 12.5" x 7.3" x 2.7" (318 x 185 x 69 cm)
Display size, WxH 8.8" x 4.9" (224 x 125 cm)
Display resolution, WxH 1024 x 600 pixels
Display type WSVGA display
Weight

4.1 lbs (1.85 kg)

Antenna Internal or external over NMEA 2000
NMEA 2000® compatible
NMEA 0183 compatible
SiriusXM™ Weather & Radio compatible
Power consumption

Max power usage at 10 Vdc: 32.4 W

Typical current draw at 12 Vdc: 1.9 A

Max current draw at 12 Vdc: 2.7 A

Mounting options Bail or flush
Garmin Marine Network™ ports

2

Maps & Memory

Preloaded maps None
Accepts data cards 2 SD™ cards
Waypoints 5,000
Routes 100
Track log 50,000 points; 50 saved tracks

Chartplotter Features

Garmin Radar compatible
Garmin Sonar compatible

Yes (built-in)

Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor™ Audio System compatible
Supports FUSION-Link™ compatible radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible

Sonar Features & Specifications

Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported

Traditional: 50/77/83/200 kHz

CHIRP (low, medium, high)

ClearVü/SideVü (260/455/800 kHz)

(dependent on transducer)

Transmit power 1 kW traditional; 1 kW CHIRP
CHIRP sonar technology Yes (Built-in)
ClearVü

Yes with CHIRP (built-in)

SideVü

Yes with CHIRP (built-in)

Maximum depth 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections

Transducer pin numbers 12
NMEA 0183 input ports

1

NMEA 0183 output ports

1

Video input ports

1 BNC

Video output ports None
Wireless connectivity

In the box

  • GPSMAP 1022xsv chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • 8-pin transducer to 12-pin sounder adapter cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation

Manuals for GPSMAP® 1022xsv


Manual NameRevisionRevision DatePart NumberAction
Flush Mount TemplateAOct 2016190-02145-04Download
Installation Instructions (PDF)BJan 2017190-02145-02Download
Owner's Manual (PDF)ADec 2016190-02145-00Download
Important Safety and Product InformationEJan 2016190-00720-32Download
