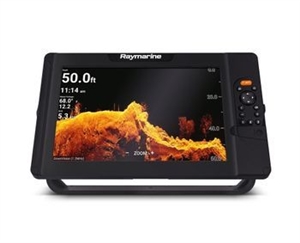

Raymarine Element 12 HV Chartplotter & Fishfinder Combo - No Transducer E70536
Raymarine Element 12 HV Chartplotter & Fishfinder Combo - No Transducer E70536



Brand New with Factory's Warranty
List Price: US$1,649.99
Our Price: US$1,099.00
You save US$550.99!




Availability:: Usually ships the next business day
Product Code: E70536

Extended Warranty

2 Year Extended Warranty under $2500 [Add US$149.99]
4 Year Extended Warranty under $2500 [Add US$249.99]
No Extended Warranty

Description Extended Information


Fish Smarter - Above and Below the Waterline

Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Bright and Rugged

Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision™

1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

RealVision™ 3D Built-In

Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor

For instantaneous chart re-draw and sharp 3D imaging.

All-in-one Transducer - Select Model

Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

Intuitive Controls

An oversized waypoint key for marking your favorite spots and three user-programmable keys.

HYPERVISION DOWN

HYPERVISION SIDE

Turn Up the Resolution with HyperVision™

  • HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
  • 1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
  • Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
  • Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom

HyperVision™ CHIRP Transducers

The all-in-one design of Element's HyperVision transducers make them compact and easy to install. Raymarine offers convenient transom mount and thru-hull options to fit any boat.

New transducers:

  • HV-100 All-in-one transom mount transducer
  • HV-300TH All-in-one plastic thru-hull transducer
  • HV-300THP All-in-one thru-hull transducer pair for deep v hulls

Connections

  • Power and NMEA2000
  • Transducer

Element HV Display Installation instructions 87360-1-EN.pdf

LightHouse Sport (Element) Basic Operation instructions 81384-1-EN.pdf

MODEL Element 7 HV Element 9 HV Element 12 HV
Display Size 7.0" Optically Bonded LCD 9.0" Optically Bonded LCD 12.0" Optically Bonded LCD
Display Resolution 800 x 480 WVGA 1280 x 800 WXGA
Display Type Non-Touch
Brightness 1,500 nits
Viewing Angle Top 50° / Bottom 60° / Left 70° / Right 70° Top 89° / Bottom 89° / Left 89° / Right 89°
Overall Dimensions
W x H x D
240 x 135 62mm
(9.5 x 5.3 x 2.4 inches)
287 x 161 x 62mm
(11.3 x 6.3 x 2.4 inches)
357 x 215 x 62mm
(14.1 x 8.5 x 2.4 inches)
Product Weight (lbs) 3.0 5.0 6.5
Water Ingress Protection IPx6 and IPx7
Operating Temperature Range -25°C to + 55°C (-13°F to 131°F)
Storage temperature range -30°C to +70°C (-22°F to 158°F)
Voltage 12V DC (8V to 16V DC)
Power Consumption
(max 12V DC)
15 Watts 20 Watts 25 Watts
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in) Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar Connection 15 pin HyperVision™ type connector
Sonar Depth CHIRP Sonar = 274m (900 feet)
DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)
SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)
RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)
Ethernet N/A
NMEA0183 N/A
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC)
SeaTalkng Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB N/A
Wi-Fi WiFi - 802.11 b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
Cartography Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Internal Memory 8GB Solid State
External Memory 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

ELEMENT WHAT'S IN THE BOX

ELEMENT SONAR / GPS
1 Trunnion bracket with mounting hardware
2 Surface mount kit with mounting hardware
3 Sun cover
4 Power / NMEA2000 1.5m cable
5 Documentation pack
6 Cartography (optional)
