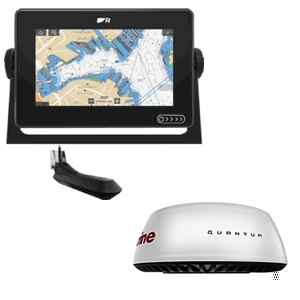

The performance-tuned Axiom®+ is a new generation of award-winning
Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped
with a powerful quad-core processor for industry-leading responsiveness and
speed, giving you the power to seamlessly redraw charts, navigate with augmented
reality, and experience RealVision™ 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and
new day/night color palettes offer enhanced visibility in any lighting
condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful
and easy-to-use Raymarine MFD operating system to date.
PERFORMANCE TUNED
Designed for speed, performance, and future expansion.
FAST & FLUID
Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP
electronic charts.
QUAD-CORE POWER
Powerful quad-core processor, plus increased onboard storage for personal
data and apps.
LIGHTHOUSE 3 OS
Smart and intuitive LightHouse 3 OS makes navigating easy.
AUGMENTED REALITY
ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
HYDROTOUGH™ DISPLAY
Nano-coated, impact-resistant glass screen repels water, oil, and smudges
for better viewing and accurate touch controls.
BRIGHTER
7, 9, and 12 inch all-weather displays are up to
25 percent brighter (up to 1,800 nits).
SHARPER
IPS display technology delivers wider viewing angles and sharp contrast
at twice the resolution of traditional displays.
MODEL |
Axiom+ 7 |
Axiom+ 9 |
Axiom+ 12 |
|
GENERAL
Display Size |
7.0 inch High Density
IPS |
9.0 inch High Density
IPS |
12.1 inch High Density
IPS |
Display Resolution |
1024 x 600 (WSVGA) |
1280 x 720 (WXGA) |
1280 x 800 (WXGA) |
Display Type |
Multitouch with
HydroTough™ rugged hydrophobic coating |
Brightness |
1,500 nits |
1,500 nits |
1,800 nits |
Viewing Angle |
85° Top, Bottom, Left, Right |
85° Top, Bottom, Left, Right |
88° Top, Bottom, Left, Right |
Dimensions
W x H x D |
210 x 142 x 77mm
7.92 x 5.24 x 3.0in
(Excluding trunnion and cables) |
244 x 158 x 77mm
9.65 x 6.22 x 3.0in
(Excluding trunnion and cables) |
314 x 217 x 77mm
12.36 x 8.54 x 3.0in
(Excluding trunnion and cables) |
Weight |
3 lbs |
5 lbs |
6.5 lbs |
Mounting Options |
Surface, Flush, Trunnion,
(Front installation bracket available) |
Waterproof Rating |
IPX6 / IPX7 |
Operating Temperature Range |
-25°C to +55°C (-13°F to
+131°F) |
Storage Temperature Range |
-30°C to +70°C (-22°F to
+158°F) |
POWER
Voltage |
12V DC (8V to 16V DC) |
Power Consumption (Full brightness) |
7.34 Watts. RV Sonar version 9.84 Watts |
8.95 Watts. RV Sonar version 11.98 Watts |
15.48 Watts. RV Sonar version 19.96
Watts |
SENSORS
GNSS / GPS |
Built-in GNSS
Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel
*Future software update required |
Sonar Type (Built-in) |
RV Version equipped with
High CHIRP, DownVision, SideVision and RealVision 3D |
Sonar Connections |
25pin RealVision™ type
connector |
Sonar Depth |
High CHIRP Sonar = 900 feet
(274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) |
RealVision™ 3D = 300 feet (91m) |
External Sonar Option |
Yes - CP100, CP200, CP370,
CP470, CP570, RVX1000 via RayNet |
Radar |
Yes - Quantum, Digital, HD
Colour / Super HD Colour and Magnum Radars |
AIS |
Yes - NMEA2000 compatible |
Autopilot Control |
Yes - Evolution Autopilot |
Thermal Night Vision |
Yes FLIR AX8, M232, M300
Series, M400, M500 |
Video / Camera |
Compatible with CAM210IP,
CAM220IP (Up to 10 IP network cameras) |
Weather |
GRIB View - Free GRIB viewer
and Theyr Ltd Subscription | SiriusXM - N. America Only |
Audio |
NMEA2000 / Bluetooth speaker
controls / Optional SiriusXM Audio |
Digital Switching |
Yes - Empirbus & C-Zone
compatible |
Remote Control |
Yes Optional RMK-10 (A80438) |
NETWORKING
Ethernet |
1 x 10/100 Mbit/s
Network (RayNet) |
NMEA0183 |
No |
NMEA2000 |
NMEA2000 via DeviceNet port.
SeaTalkng compatible using an optional adapter |
SeaTalkNG |
Requires DeviceNet Female
(F) adaptor cable (A06079 120mm adaptor included in box) |
USB |
1 x USB microAB |
Wi-Fi |
WiFi - 802.11 a/b/g/n |
BlueTooth |
Bluetooth v4.0 |
NAVIGATION
Cartography |
Lighthouse
Charts, Navionics, and C-MAP compatible |
Waypoint/Routes/Tracks (Wpts/Rts/Trk) |
10,000 wpts /
200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts |
MEMORY
Internal Memory |
16 GB Solid
State |
External Memory |
1x MicroSD Card
Slot |
Languages |
24 |
Conformances |
NMEA 2000
certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick,
Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 |
OTHER
Languages |
24 |
Conformances |
NMEA 2000
certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick,
Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 |
In the Box
- Axiom+ Display
- Mounting bracket w/ knobs
- Suncover
- Flush mount gasket
- DeviceNet to SeaTalk-ng adapter cable
- Power/NMEA2000 cable
- Installation hardware
- Documentation
- Radar Antenna/ Cable
RAYMARINE RADAR SCANNERS |
Radar Type |
Cyclone Open Array Radar |
Magnum™ Open Array Radar |
Quantum Radome |
Quantum 2 with Doppler |
HD Color Radomes |
Models |
55W (6kW) and 110W (12kW) Open Array Scanners
1m, 1.2m or 1.8m (3ft, 4ft or 6ft) models |
4kW and 12kW Open Array Scanners
1.2m or 1.8m (4ft or 6ft) models |
Quantum 18" |
Quantum 2 18" |
4kW Radomes
45cm or 61cm (18" or 24") models |
MFD Compatibility |
Axiom, Axiom+, Axiom Pro, Axiom XL |
Axiom, Axiom+, Axiom Pro, Axiom XL, eS Series, and gS Series |
Axiom, Axiom+, Axiom Pro, Axiom XL, eS Series, and gS Series |
Axiom, Axiom+, Axiom Pro, Axiom XL |
Axiom, Axiom+, Axiom Pro, Axiom XL, eS Series, and gS Series |
Perfect for |
Powerboats, commercial, and law enforcement applications |
Powerboats, commercial, and law enforcement applications |
Sailboats, RIBs, and smaller powerboats |
Sailboats, RIBs, and smaller powerboats |
Sail, power, and light commercial applications |
Type |
Solid State CHIRP Pulse Compression with Doppler target tracking and
RangeFusion™ technology |
Super high definition color radar technology |
Solid State CHIRP Pulse Compression |
Solid State CHIRP Pulse Compression with Doppler target tracking |
High definition color radar technology |
Power Consumption |
Cyclone - 4 kW 70W (30W standby)
Cyclone Pro - 12 kW 110W (30W standby) |
70W (30W standby)
110W (30W standby) |
Energy efficient design with low power consumption. 17 watts transmit and
7 watts standby |
Energy efficient design with low power consumption. 17 watts transmit and
7 watts standby |
18” 40 W (20 W Standby)
24” 60 W (25 W Standby) |
Range Performance |
Cyclone - 6kW: 72NM
Cyclone Pro - 12kW: 96NM |
4kW: 72NM
12kW: 96NM |
24NM |
24NM |
18” 24NM
24” 48NM |
Performance |
Superior long-range target separation using CHIRP pulse compression and
Beam Sharpening technology. Rugged aerodynamic design. 60rpm fast target
tracking |
Superior long-range target separation with Beam Sharpening technology.
Trusted radar technology used by the United States Coast Guard |
Lightweight and easy to install. Excellent short and long range
performance. Detect targets as close as 18ft |
Lightweight and easy to install. Excellent short and long range
performance. Detect targets as close as 18ft |
Trusted compact radar radome performance. High speed scanning |
Automatic Bird Mode |
Cyclone enhanced BirdMode |
Yes |
No |
No |
Yes |
MARPA Target Tracking |
Yes |
Yes |
Yes |
Yes |
Yes |
